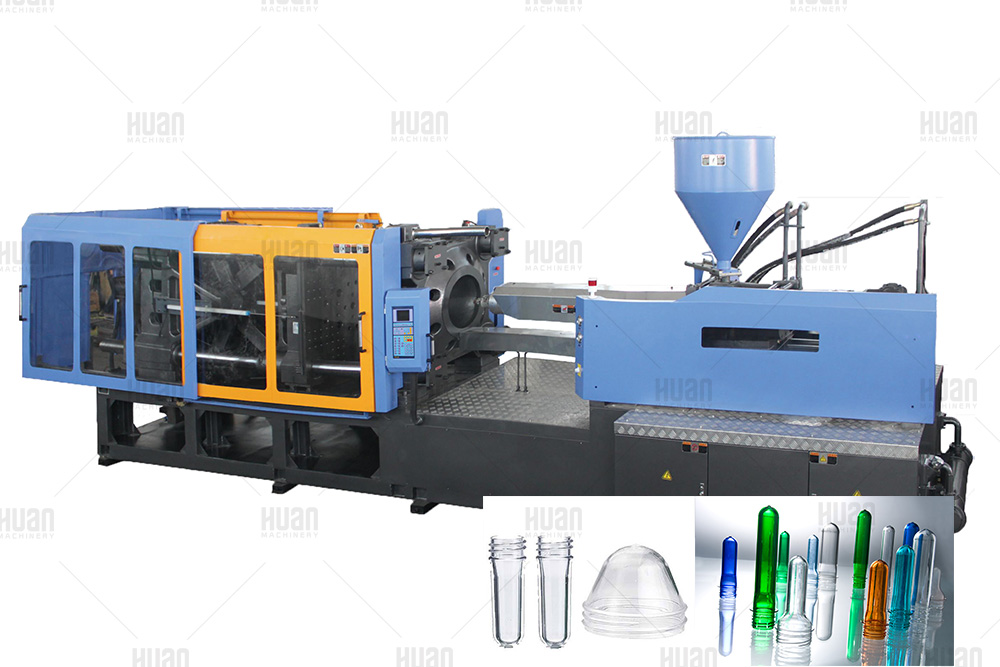

Servo system pet bottle preform injection machine/ plastic Household items injection machine/injection machine price

One-stop solution.We have more than 20 years of rich experience and a good reputation. We attach great importance to customer experience and satisfaction. In China, we have a certain influence and appeal. We have maintained a good cooperative relationship with a group of excellent global suppliers. As long as you need, we are able to provide you with a whole high-quality production line.
Availability:
Quantity:
Inquire Add to Basket

pinterest sharing button
facebook sharing button
linkedin sharing button
twitter sharing button
whatsapp sharing button
sharethis sharing button

  • plastic cap,pet preform,household products

Automatic high capacity plastic injection molding machine for PET preform

One-stop solution.We have more than 20 years of rich experience and a good reputation. We attach great importance to customer experience and satisfaction. In China, we have a certain influence and appeal. We have maintained a good cooperative relationship with a group of excellent global suppliers. As long as you need, we are able to provide you with a whole high-quality production line.

Plastic Injection molding machine
1) Precision hydraulic synchronous template adjusting system.
2) Optimal design of high-strength, precision clamping unit.
3) Large screen, high precision machine computer system.
4) Optimized electric system.
5) Balanced type of double whole transfer oil cylinder.
6) Large torque oil motor.
7) High abrasion-resistant alloy sliding block.
8) The integrate type of detachable oil tank, magnetic filter and bypass strainer.
9) Reasonable and high efficient lubrication system.
10) Modularized energy conservation, high response oil-way system.

Injection Modling Machine for PET Preform

injection molding machinepet preformpet preform mould


ITEM
UNIT
DATA
Injection Unit
Screw Diameter
mm
65
70
75
Screw L/D Ratio
L/D
22.6
21
19.6
Injection Volume
cm3
996
1155
1325
Shot Weight
g
906
1051
1206
Injection Pressure
Mpa
203
175
152
Clamping Unit
Clamping Force
kN
3300
Opening Stroke
mm
660
Mould Thickness(Min-Max)
mm
250-680
Space Between Tie-Bars
mm
680×680
Ejector Force
kN
91
Ejector Stroke
mm
170
General
Motor Power
kW
30
Heater
kW
23.3
Pump Pressure
Mpa
16
Machine Dimension
m
7.4×1.8×2.5
Machine Weight
T
13
Mould Orientation Ring Diameter
mm
Φ160
Nozzle Radius
mm
SR15


Welcome to send us inquiry if you are interested.

injection molding machineinjection molding machineinjection molding machineinjection molding machine

injection molding machine

HUAN MACHINERY

Our-Service


Choosing the suitable machine: We have a professional team, electrical engineers, mechanical engineers, commissioning engineers...Our engineers have been in this field over 18 years, have rich experiences. According to the customer’s plastic products and requirements , we could offer good solution based on experiences. And we also could recommend the related auxiliary machines to get a whole production line.


Customer’s visit: Before playing the order, warmly welcome to visit our workshop if customer interests. We will introduce our machines on site.

Delivery time: we will finish manufacturing and testing within delivery time, make sure customer’s production schedule. During the production process, we also will share the production progress photos and testing video with customer.

Warranty time: our warranty time is 12months after the delivery. During this period, any quality problem of the machine, we will send the replacement parts by express freely. If the buyer meet any technical problems, we will provide the support through remote control.

Training, installation: when the machine reaches the buyer’s factory, the buyer could tell us, we will dispatch an engineer to the buyer’s factory to help install and test the machine until it runs normally. Meanwhile, we also could help train the customer’s employee.



1. who are we?
We are based in Jiangsu, China, start from 2011,sell to Africa(00.00%),Western Europe(00.00%),North America(00.00%),South America(00.00%),Southeast Asia(00.00%),Mid East(00.00%),South Asia(00.00%). There are total about 5-10 people in our office.

2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;

3.what can you buy from us?
Extrusion Blow Molding Machine and Related Auxiliary Machines,Injection Molding Machine and Related Auxiliary Machines

4. why should you buy from us not from other suppliers?
More than 12 years manufacturing and exporting experience. We are a company with producing and exporting as well. We have clients to all over the world, accordingly we know each market well. My factory is near Shanghai airport with convenient traffic.

5. what services can we provide?
Accepted Delivery Terms: FOB,CFR,CIF；
Accepted Payment Currency:USD,EUR;
Accepted Payment Type: T/T,L/C,Credit Card,Western Union,Cash;
Language Spoken:English,Chinese,Spanish
