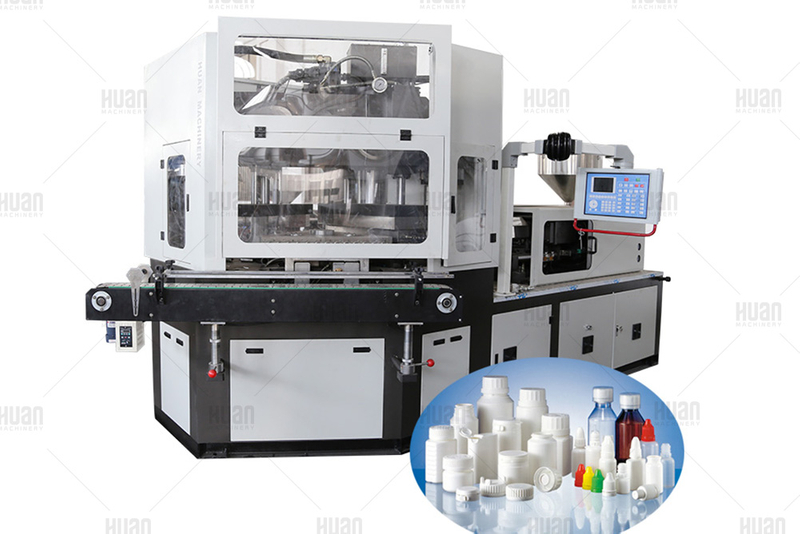

High efficiency injection blow molding machinery blowing mould machine for making plastic medicine bottle

loading

Share to:
pinterest sharing button
facebook sharing button
linkedin sharing button
twitter sharing button
whatsapp sharing button
sharethis sharing button
This injection blowing molding machinery is a one-step full automatic injection blow molding machine which is applicable to the processing of thermoplastic materials such as PE, PP, PS(SAN, PMMA, PC, PETG, PEN). It is widely used in manufacturing packaging bottles for pharmaceutical, healthcare product, food and beverage, cosmetic and other industries. This machine has multi-cavities in one mould which can perform continuous production fully automatically. It adopts horizontal three-stations index head, hot runner system and multi-stage injection molding system. Plastic injection, blowing and stripping stations act simultaneously to guarantee a high efficiency and energy efficient operation of the machine. Our IBM series ensures the flatness of bottle mouth and high precision of the internal and external diameter and the thread of bottle neck without any scrap. It is the standard equipment for modern environment protecting production.
Availability:
Quantity:
  • 0-2L pp,pvc,pe bottles

Product feature

This injection blowing molding machinery is a one-step full automatic injection blow molding machine which is applicable to the processing of thermoplastic materials such as PE, PP, PS(SAN, PMMA, PC, PETG, PEN). It is widely used in manufacturing packaging bottles for pharmaceutical, healthcare product, food and beverage, cosmetic and other industries. This machine has multi-cavities in one mould which can perform continuous production fully automatically. It adopts horizontal three-stations index head, hot runner system and multi-stage injection molding system. Plastic injection, blowing and stripping stations act simultaneously to guarantee a high efficiency and energy efficient operation of the machine. Our IBM series ensures the flatness of bottle mouth and high precision of the internal and external diameter and the thread of bottle neck without any scrap. It is the standard equipment for modern environment protecting production.


Technical data

Item

IBM250/450

IBM300/700

IBM500/1350

Screw Diameter

45mm

55mm

70mm

Injection Capacity(max.)

250cm3

300cm3

500cm3

Injection Clamping Force

460KN

700KN

1250KN

Blowing Clamping Force

75KN

110KN

200KN

Total Power

40KW

56KW

95KW

Operating Power

52-70%

52-70%

52-70%

Hydraulic Working Pressure

14.5Mpa

14.5Mpa

14.5Mpa

Compressed Air Pressure

0.7-0.9Mpa

0.7-0.9Mpa

0.7-0.9Mpa

Cooling Water Pressure

0.3-0.4Mpa

0.3-0.4Mpa

0.3-0.4Mpa

Product Diameter(max.)

100mm

100mm

100mm

Product Length(max.)

200mm

200mm

200mm

Overall Dimension

420*176*194cm

480*205*200cm

580*250*210cm

Weight(Approx.)

5T

8.5T

13T


Injection Blowing Mold Machine for Plastic Bottles

injection blowing machine


production line

Welcome to send us inquiry if you are interested.

injection molding machineinjection molding machineinjection molding machineinjection molding machine

injection molding machine

HUAN MACHINERY

Our-Service


Choosing the suitable machine: We have a professional team, electrical engineers, mechanical engineers, commissioning engineers...Our engineers have been in this field over 18 years, have rich experiences. According to the customer’s plastic products and requirements , we could offer good solution based on experiences. And we also could recommend the related auxiliary machines to get a whole production line.


Customer’s visit: Before playing the order, warmly welcome to visit our workshop if customer interests. We will introduce our machines on site.

Delivery time: we will finish manufacturing and testing within delivery time, make sure customer’s production schedule. During the production process, we also will share the production progress photos and testing video with customer.

Warranty time: our warranty time is 12months after the delivery. During this period, any quality problem of the machine, we will send the replacement parts by express freely. If the buyer meet any technical problems, we will provide the support through remote control.

Training, installation: when the machine reaches the buyer’s factory, the buyer could tell us, we will dispatch an engineer to the buyer’s factory to help install and test the machine until it runs normally. Meanwhile, we also could help train the customer’s employee.



1. who are we?
We are based in Jiangsu, China, start from 2011,sell to Africa(00.00%),Western Europe(00.00%),North America(00.00%),South America(00.00%),Southeast Asia(00.00%),Mid East(00.00%),South Asia(00.00%). There are total about 5-10 people in our office.

2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;

3.what can you buy from us?
Extrusion Blow Molding Machine and Related Auxiliary Machines,Injection Molding Machine and Related Auxiliary Machines

4. why should you buy from us not from other suppliers?
More than 12 years manufacturing and exporting experience. We are a company with producing and exporting as well. We have clients to all over the world, accordingly we know each market well. My factory is near Shanghai airport with convenient traffic.

5. what services can we provide?
Accepted Delivery Terms: FOB,CFR,CIF;
Accepted Payment Currency:USD,EUR;
Accepted Payment Type: T/T,L/C,Credit Card,Western Union,Cash;
Language Spoken:English,Chinese,Spanish
