Products
Home » Products » Chemical Drum Blow Molding Machine » Chemical 220L 200L 160L HDPE One Single Layer Petrol Barrel 200 Litre Fuel Oil Drum Making Extrusion Blow Molding Machine

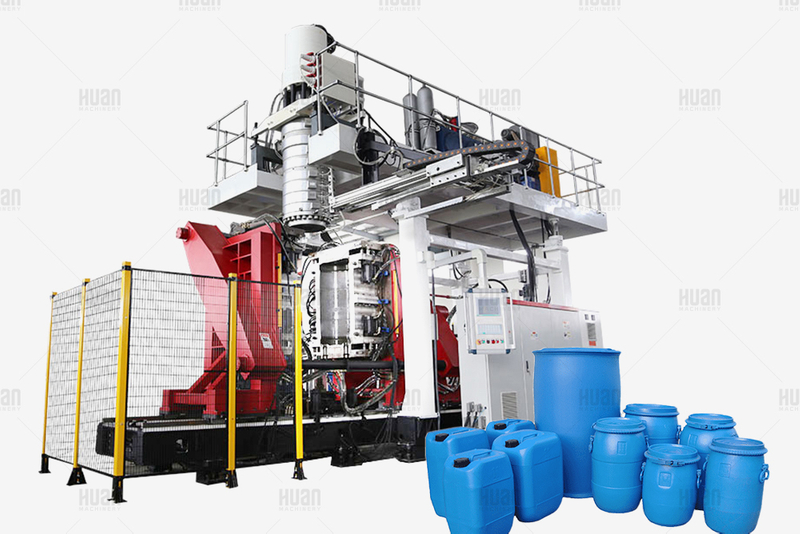

Chemical 220L 200L 160L HDPE One Single Layer Petrol Barrel 200 Litre Fuel Oil Drum Making Extrusion Blow Molding Machine

Share to:
Our extrusion blow molding machine can produce hollow bottles from 5ml to 5000L with material HDPE, LDPE, PP, PVC, EVA, EVOH, PA, PVC, ABS such as bottle ,jerry can, canister, container, can, jar, jug, kettle, drum, barrel and other abnormal shape produce such as ocean sea ball, children toys, seat, auto parts, table plate, mannequin, float block, float bridge and others.
  • BSM120-220L
  • HUAN
  • BSM120-220L
  • petrol barrel, petrol drum, fuel barrel, fuel drum, chemical industry, food package, cosmetic field, medical field
Volume:
Material:
Layer:
Availability:


Automatic hydraulic 100 200  litre plastic hdpe drum moulding extrusion blow molding making  machine

It is 100L 120L 150L 200L 220L accumulating machine for producing HDPE, PP, PVC max. 220L plastic products, like 200liter, 220liter jerrycan, plastic container, oil drum, barrel... Besides, it also could produce some different shapes plastic products.


We shall supply full production line including:

auto loader

mixer

chiller

compressor

granulator

crusher

neck cut device

injection mold machine for caps

others


Welcome to send us inquiry if you are interested.


Specification
BSM120Z-220L
Max product volume (L)
220L HMWHDPE
Machine weight (T)
38
Machine size(m)
9.5X4.1X6.5
Screw diameter (mm)
120
Length/Diameter ratio
30/1
Extrusion motor power (kw)
132
Plasticizing capacity (kg/h)
320
Head type
accumulating
Clamping force (KN)
1500
Platen size (mm)
1200*1300
Platen opening stroke (mm)
800-1700
Max mould size (mm)
950*1600
Mould thickness (mm)
810-950
Total power (kw)
308
Average energy consumption (kw)
92


Extrusion system:

Extrusion motor and gear box offer the power for screw. Meanwhile screw and barrel with strong material make sure plasticizing plastic material well, ceramic material heater with evenly and quickly heating function!


Head system:

Accumulating type, material ejection with first in first out method. Head structure is designed by our professional engineer, flow stable and quick. Use parison controller for controlling the thickness of jerrycans, to make sure thickness uniform. Besides, we also could adjust thickness range by controller’s operating version!


Clamping system:

It has clamping plate and cylinder, linear guide, slider, transducer... Mold is fixed on the plate. All components make sure mechanical movement precision, stable and quick!



Electrical control:

It has operation touch screen, PLC, contact switch, air switch, delay, voltage stabilized power, inverter ...We could input, modify and monitor the parameter of heating, pressure, time, alarm... to control whole machine’s action parameterby touch screen. It has two operation languages, Chinese and English!




Hydraulic system: It has hydraulic servo motor and pump, valve, pump, oil tank, oil cooler, tube... Offer power for mechanical action, meanwhile proportional valve is controlled by oil flow pressure for transfer digital signal into mechanical action, to control the action of blow pin, clamping structure, head and extrusion!

In this machine, hydraulic motor uses servo type. Servo system could save about 30% power consumption than normal AC motor, and servo motor is with less noise!






Our-Service


Choosing the suitable machine: We have a professional team, electrical engineers, mechanical engineers, commissioning engineers...Our engineers have been in this field over 18 years, have rich experiences. According to the customer’s plastic products and requirements , we could offer good solution based on experiences. And we also could recommend the related auxiliary machines to get a whole production line.


Customer’s visit: Before playing the order, warmly welcome to visit our workshop if customer interests. We will introduce our machines on site.

Delivery time: we will finish manufacturing and testing within delivery time, make sure customer’s production schedule. During the production process, we also will share the production progress photos and testing video with customer.

Warranty time: our warranty time is 12months after the delivery. During this period, any quality problem of the machine, we will send the replacement parts by express freely. If the buyer meet any technical problems, we will provide the support through remote control.

Training, installation: when the machine reaches the buyer’s factory, the buyer could tell us, we will dispatch an engineer to the buyer’s factory to help install and test the machine until it runs normally. Meanwhile, we also could help train the customer’s employee.


客户1
客户2
客户3
客户4
客户5
客户6



1. who are we?
We are based in Jiangsu, China, start from 2011,sell to Africa(00.00%),Western Europe(00.00%),North America(00.00%),South America(00.00%),Southeast Asia(00.00%),Mid East(00.00%),South Asia(00.00%). There are total about 5-10 people in our office.

2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;

3.what can you buy from us?
Extrusion Blow Molding Machine and Related Auxiliary Machines,Injection Molding Machine and Related Auxiliary Machines

4. why should you buy from us not from other suppliers?
More than 12 years manufacturing and exporting experience. We are a company with producing and exporting as well. We have clients to all over the world, accordingly we know each market well. My factory is near Shanghai airport with convenient traffic.

5. what services can we provide?
Accepted Delivery Terms: FOB,CFR,CIF;
Accepted Payment Currency:USD,EUR;
Accepted Payment Type: T/T,L/C,Credit Card,Western Union,Cash;
Language Spoken:English,Chinese,Spanish
