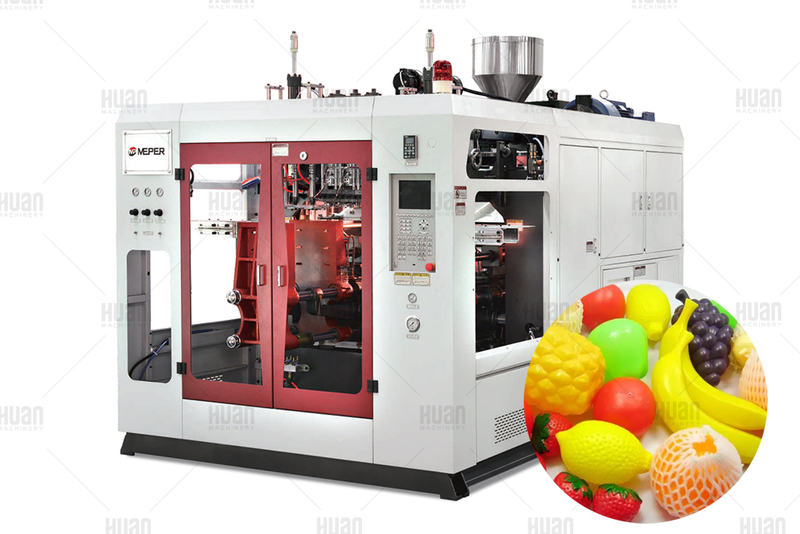

Plastic child toy kitchen food fruit toys extrusion blow molding make machine
The extrusion blow molding machine is standard type machine with double station tie bar structure, The clamping structure is three or four tie bars direct locking structure with automatic lubrication system. The structure is simple and stable and it is convenient for plastics waste collection. |
The whole machine adopts computer control, simple operation, reliable work, high degree of automation, good interchangeability of components,realize one machine multi-purpose. It can choose single and double mode-shifting models to meet different output requirements. It can be equipped with single head, double head, four head, multi-layer head, double transparent line head and servo wall thickness control head to meet the requirements of different products. |
基本规格 SPECIFICATIONS | |
适用原料Material | PE PP PVC PA... |
制品容积 Max container capacity | 5L |
机头数 Number of die | 123,4,6 |
机器外形尺寸 Machine Dimension(LxWxH) | 3.6x2.2x2.36m |
机器重量Total weight | 5.5ton |
锁模系统 CLAMPING UNIT | |
锁模力 Clamping force | 90kN |
模板间距 Platen openning stokes | 180-480mm |
移模行程 Carriage stroke | 450mm |
模具尺寸 Max mould size(WxH) | 430x470mm/430x400mm |
挤出系统 EXTRUSION UNIT | |
螺杆直径 Screw diameter | 70mm |
螺杆长径比Screw L/D ratio | 24 L/D |
塑化能力 (HDPE) Plasticizing capacity | 70kg/h |
螺杆加热段数Screw heating zone | 3 zone |
螺杆加热功率Screw heating power | 14.1kw |
螺杆风机功率Screw fan power | 0.14kw |
挤出电机功率 Extrusion motor power | 18.5kw |
机头 DIE HEAD | |
机头加热段数Die head heating zone | 3 zone |
机头加热功率Power of die heating | 6.5kw |
能耗 ENERGY CONSUMPTION | |
总装机功率 Total power of machine | 49.14kw |
油泵电机功率 Power of oil pump motor | 9.5kw |
气源压力Air pressure | 0.6-0.8 Mpa |
平均能耗 Average energy consumption | 28kw |
压缩空气用量 Consumption compression air | 1.2m3/min |
冷却水用量 Consumption cooling water | 40L/min |
