BSM
HUAN
BSM
road block,traffic barrier,road barrier,traffic drum,traffic sidewall,traffic jersey barrier,traffic conesbarricade

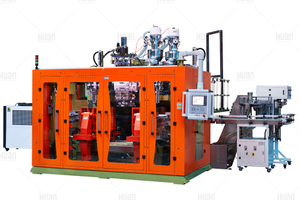

Accumulating type extrusion machine BSM80N-30Lfor producing HDPE, PP, PVC max.
0-1000L plastic products, like jerrycan, small container, motor oil drum or engine oil drum, and plastic jar.
Besides, it could choose different continuous heads based on actual plastic products. Quick extrusion, stable running, easy operation and mature technology.

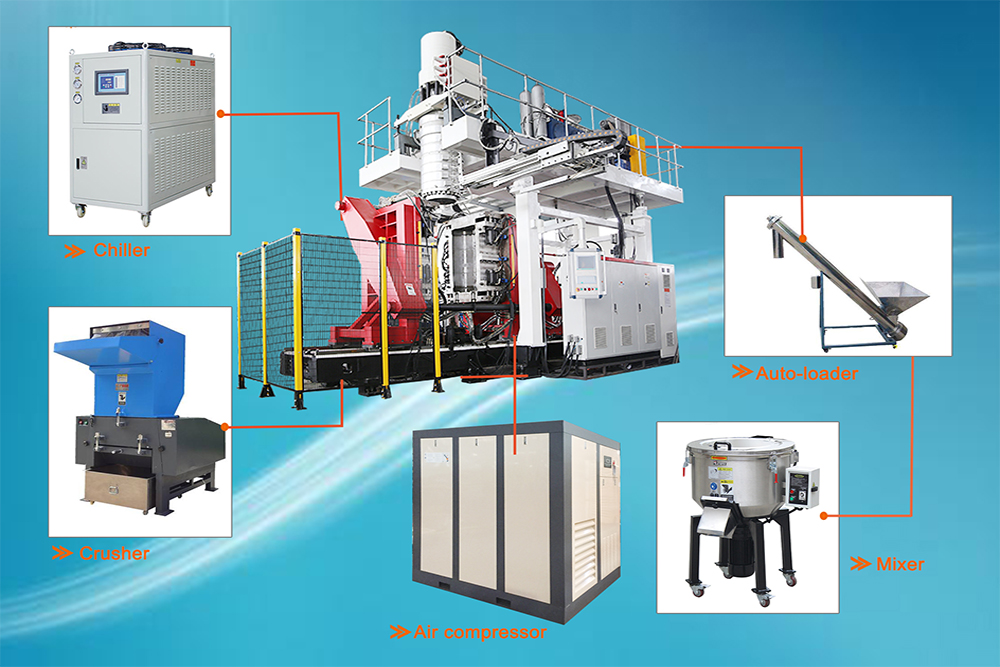

We shall supply you one whole prodution line including:
auto loadr
mixer
chiller
granulator
compressor
mold
neck cut device
others
Specification | BSM100-120L |
Max product volume (L) | 120 |
Machine weight (T) | 15 |
Machine size(m) | 6.2X2.8X4.8 |
Screw diameter (mm) | 100 |
Length/Diameter ratio | 24/1 |
Extrusion motor power (kw) | 45 |
Plasticizing capacity (kg/h) | 175 |
Head type | accumulating |
Clamping force (KN) | 500 |
Platen size (mm) | 1020*1060 |
Platen opening stroke (mm) | 450-1200 |
Max mould size (mm) | 780*1250 |
Mould thickness (mm) | 460-650 |
Total power (kw) | 146 |
Average energy consumption (kw) | 50 |
Accumulating type extrusion machine BSM80N-30Lfor producing HDPE, PP, PVC max.
0-1000L plastic products, like jerrycan, small container, motor oil drum or engine oil drum, and plastic jar.
Besides, it could choose different continuous heads based on actual plastic products. Quick extrusion, stable running, easy operation and mature technology.
We shall supply you one whole prodution line including:
auto loadr
mixer
chiller
granulator
compressor
mold
neck cut device
others
Specification | BSM100-120L |
Max product volume (L) | 120 |
Machine weight (T) | 15 |
Machine size(m) | 6.2X2.8X4.8 |
Screw diameter (mm) | 100 |
Length/Diameter ratio | 24/1 |
Extrusion motor power (kw) | 45 |
Plasticizing capacity (kg/h) | 175 |
Head type | accumulating |
Clamping force (KN) | 500 |
Platen size (mm) | 1020*1060 |
Platen opening stroke (mm) | 450-1200 |
Max mould size (mm) | 780*1250 |
Mould thickness (mm) | 460-650 |
Total power (kw) | 146 |
Average energy consumption (kw) | 50 |
Extrusion system: Extrusion motor and gear box offer the power for screw. Meanwhile screw and barrel with strong material make sure plasticizing plastic material well, ceramic material heater with evenly and quickly heating function! | Head system Accumulating type, material ejection with first in first out method. Head structure is designed by our professional engineer, flow stable and quick. Use parison controller for controlling the thickness of jerrycans, to make sure thickness uniform. Besides, we also could adjust thickness range by controller’s operating version! |
Clamping system: It has clamping plate and cylinder, linear guide, slider, transducer... Mold is fixed on the plate. All components make sure mechanical movement precision, stable and quick! | Electrical control: It has operation touch screen, PLC, contact switch, air switch, delay, voltage stabilized power, inverter ... We could input, modify and monitor the parameter of heating, pressure, time, alarm... to control whole machine’s action parameter by touch screen. It has two operation languages, Chinese and English! | Hydraulic system: It has hydraulic servo motor and pump, valve, pump, oil tank, oil cooler, tube... Offer power for mechanical action, meanwhile proportional valve is controlled by oil flow pressure for transfer digital signal into mechanical action, to control the action of blow pin, clamping structure, head and extrusion! In this machine, hydraulic motor uses servo type. Servo system could save about 30% power consumption than normal AC motor, and servo motor is with less noise! |
Extrusion system: Extrusion motor and gear box offer the power for screw. Meanwhile screw and barrel with strong material make sure plasticizing plastic material well, ceramic material heater with evenly and quickly heating function! | Head system Accumulating type, material ejection with first in first out method. Head structure is designed by our professional engineer, flow stable and quick. Use parison controller for controlling the thickness of jerrycans, to make sure thickness uniform. Besides, we also could adjust thickness range by controller’s operating version! |
Clamping system: It has clamping plate and cylinder, linear guide, slider, transducer... Mold is fixed on the plate. All components make sure mechanical movement precision, stable and quick! | Electrical control: It has operation touch screen, PLC, contact switch, air switch, delay, voltage stabilized power, inverter ... We could input, modify and monitor the parameter of heating, pressure, time, alarm... to control whole machine’s action parameter by touch screen. It has two operation languages, Chinese and English! | Hydraulic system: It has hydraulic servo motor and pump, valve, pump, oil tank, oil cooler, tube... Offer power for mechanical action, meanwhile proportional valve is controlled by oil flow pressure for transfer digital signal into mechanical action, to control the action of blow pin, clamping structure, head and extrusion! In this machine, hydraulic motor uses servo type. Servo system could save about 30% power consumption than normal AC motor, and servo motor is with less noise! |
Choosing the suitable machine: We have a professional team, electrical engineers, mechanical engineers, commissioning engineers...Our engineers have been in this field over 18 years, have rich experiences. According to the customer’s plastic products and requirements , we could offer good solution based on experiences. And we also could recommend the related auxiliary machines to get a whole production line.
Choosing the suitable machine: We have a professional team, electrical engineers, mechanical engineers, commissioning engineers...Our engineers have been in this field over 18 years, have rich experiences. According to the customer’s plastic products and requirements , we could offer good solution based on experiences. And we also could recommend the related auxiliary machines to get a whole production line.
1. who are we?
We are based in Jiangsu, China, start from 2011,sell to Africa(00.00%),Western Europe(00.00%),North America(00.00%),South America(00.00%),Southeast Asia(00.00%),Mid East(00.00%),South Asia(00.00%). There are total about 5-10 people in our office.
2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;
3.what can you buy from us?
Extrusion Blow Molding Machine and Related Auxiliary Machines,Injection Molding Machine and Related Auxiliary Machines
4. why should you buy from us not from other suppliers?
More than 12 years manufacturing and exporting experience. We are a company with producing and exporting as well. We have clients to all over the world, accordingly we know each market well. My factory is near Shanghai airport with convenient traffic.
5. what services can we provide?
Accepted Delivery Terms: FOB,CFR,CIF;
Accepted Payment Currency:USD,EUR;
Accepted Payment Type: T/T,L/C,Credit Card,Western Union,Cash;
Language Spoken:English,Chinese,Spanish
1. who are we?
We are based in Jiangsu, China, start from 2011,sell to Africa(00.00%),Western Europe(00.00%),North America(00.00%),South America(00.00%),Southeast Asia(00.00%),Mid East(00.00%),South Asia(00.00%). There are total about 5-10 people in our office.
2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;
3.what can you buy from us?
Extrusion Blow Molding Machine and Related Auxiliary Machines,Injection Molding Machine and Related Auxiliary Machines
4. why should you buy from us not from other suppliers?
More than 12 years manufacturing and exporting experience. We are a company with producing and exporting as well. We have clients to all over the world, accordingly we know each market well. My factory is near Shanghai airport with convenient traffic.
5. what services can we provide?
Accepted Delivery Terms: FOB,CFR,CIF;
Accepted Payment Currency:USD,EUR;
Accepted Payment Type: T/T,L/C,Credit Card,Western Union,Cash;
Language Spoken:English,Chinese,Spanish
