High speed blow molding bottle leak test machine for plastic container jerrycan drum
The Blow Molding Bottle Leak Tester Machine. In particular for the testing the leak in the blow molding Containers, Bottles and jerrycan from 100ml to 30L. This machine is very friendly to use and the solutions for quick and easy production changeover up to 10 minutes. The leak tester machine for solution to maintain production quality and zero leak for Containers, Bottles and Jerrycan.

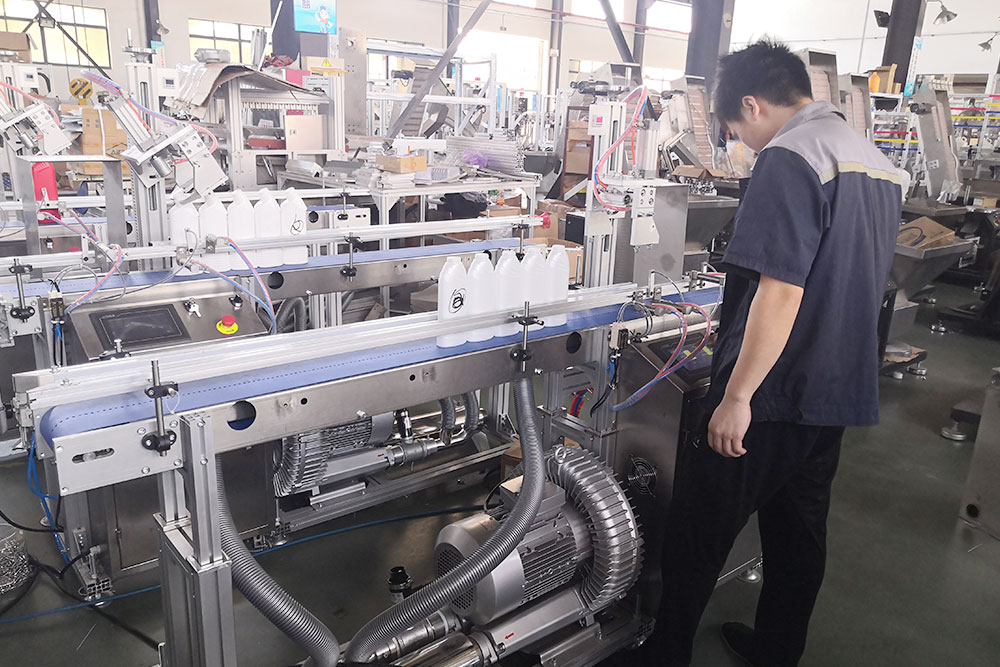

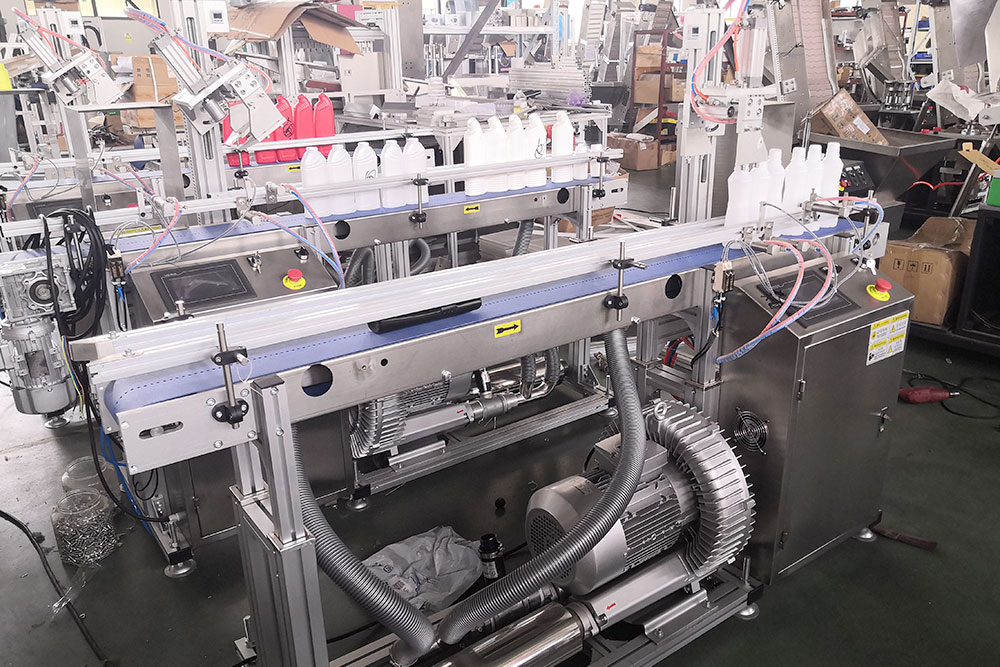

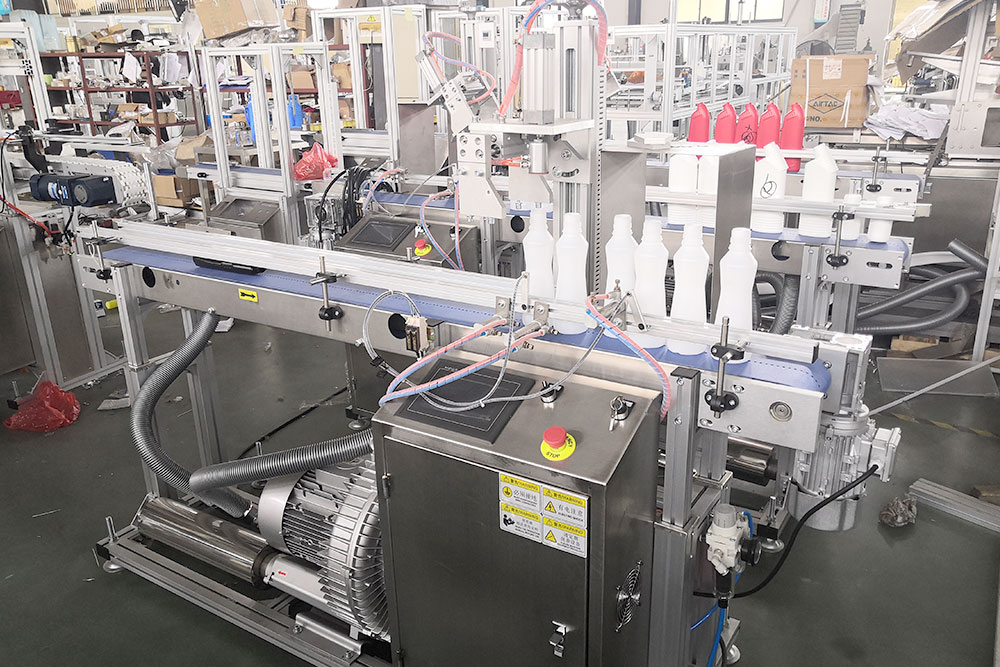

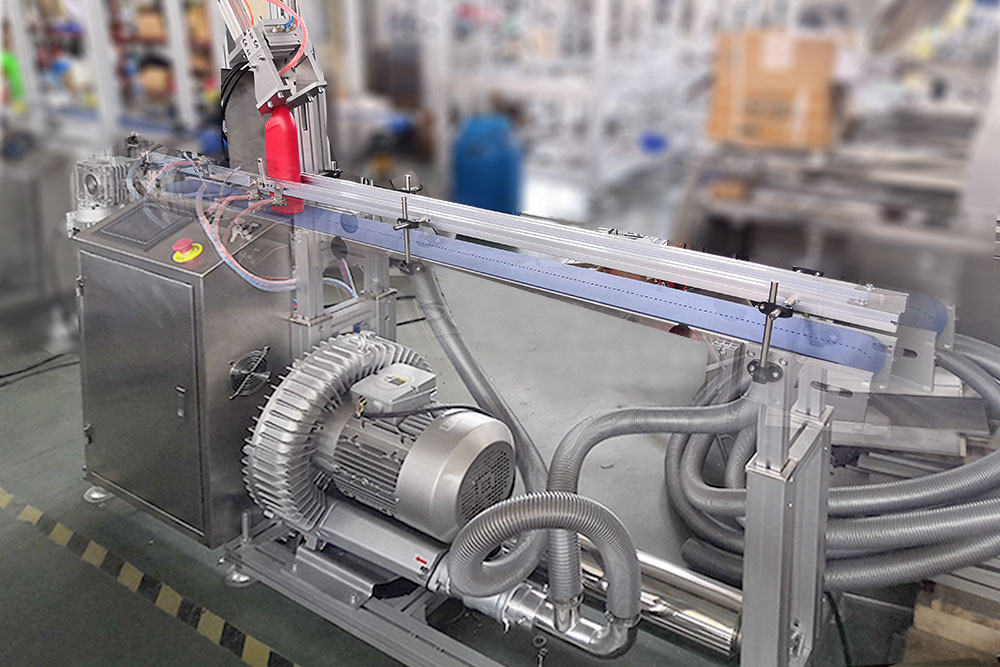

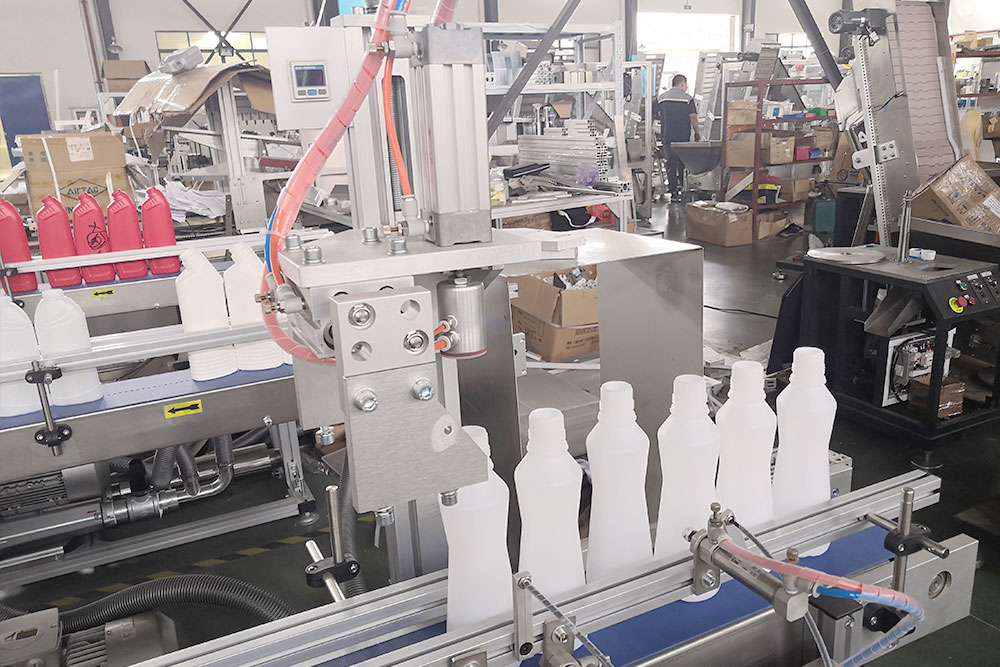

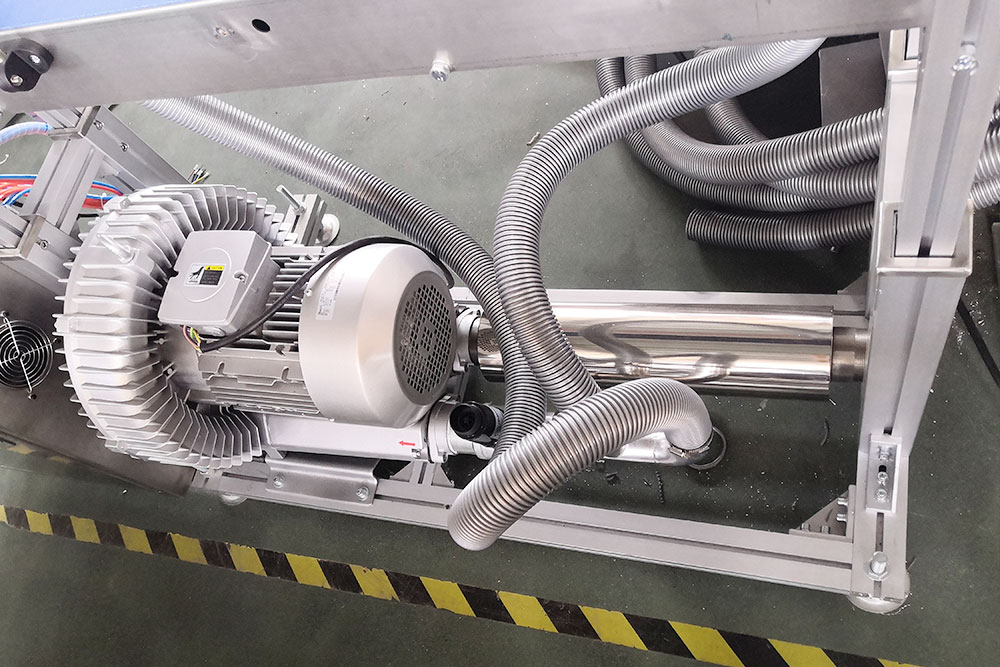

Leak test machine details

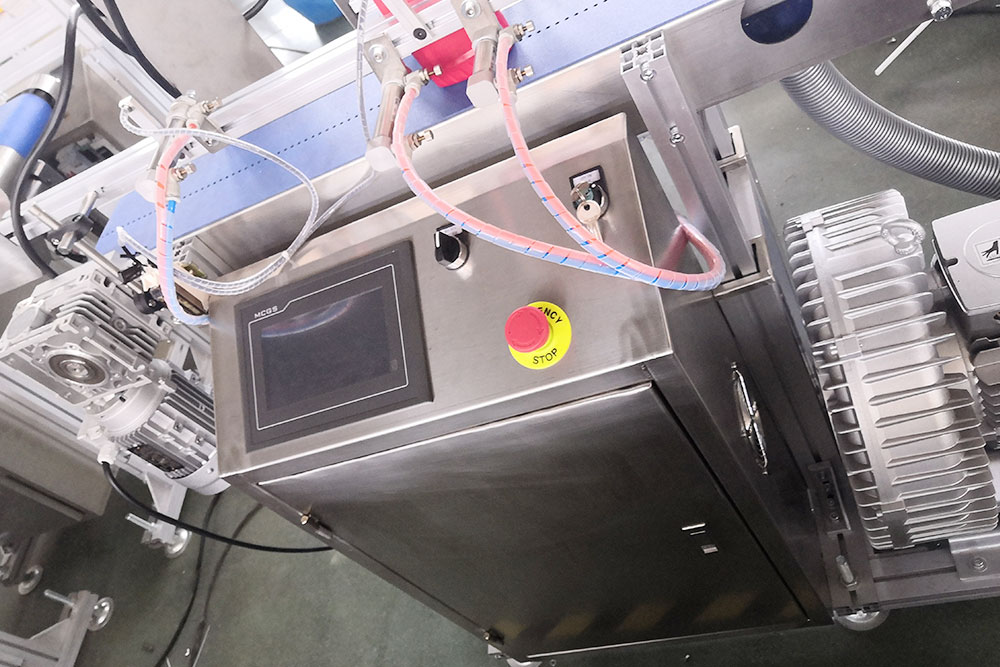

Touch screen
Products Character
1.Operates easily: one-botton leaking tests automatically, the text demonstrats leak testing information, the defective products reject the production line automatically.
2. Constructs firmly: The steel plate works fuselage, the fluctuation place unifies the guide pillar and the lead screw.
3. The leak testing precision is high, the speed is quick: using the high accuracy digital pressure sensing index error is to press the leak testing, the laser probe head.
4. The price advantage: our leak testing machine is considered today on the field of plastic container for leak testing amchine most to have the performance-to-price ratio, obtained the test and confirmation from the global customers in the past several years.
Technical Parameters
Model | HJ-LTL100 | HJ-LTS1 | HJ-LTM1 | HJ-LTM2 | HJ-LTM3 | HJ-LTM4 |
The quantity of Location | 1 | 1 | 1 | 2 | 3 | 4 |
The power of Motor | 100W/220V | 90W/220V | 90W/220V | 90W/220V | 100W/220V | 100W/220V |
The speed of Transportation tape(rice/second) | 0-15 | 0-15 | 0-15 | 0-15 | 0-15 | 0-15 |
The speed of the leak testing (only/hour) working speed | 0-1L | 1800 | 1800 | 1800 | 3200 | 4000 | 6000 |
1-2L | 1500 | 1500 | 1500 | 2800 | 3200 | 5000 |
3-5L | 900 | --- | 1200 | 200 | 2600 | --- |
5-8L | 700 | --- | 900 | 1600 | --- | --- |
8-15L | 600 | --- | 800 | 1200 | --- | --- |
10-80L |
|
|
|
|
|
|
The maximum outer diameter of observable bottle's mouth(mm) is removable | 75 | 30 | 65 | 65 | 40 | 40 |
The extreme breadth of observable bottle(mm) | 400 | 200 | 200 | 160 | 150 | 150 |
The most greatly highly of observable bottle(mm) | 600 | 400 | 400 | 400 | 200 | 200 |
The greatest volume of observable bottle(L) | 80 | 15 | 15 | 8 | 5 | 2 |
Air pressure(Mpa/cm2) | 0.6 | 0.5 | 0.5 | 0.5 | 0.6 | 0.6 |
Total power consumption(w) | 110 | 110 | 110 | 110 | 110 | 120 |
Weight (kg) only |
|
|
|
|
|
|
External dimensions L*W*H(M) packing case is empty | 1.65*0.8*1.7 | 1.65*0.6*1.65 | 1.65*0.6*1.65 | 1.65*0.6*1.65 | 1.65*0.6*1.65 | 1.65*0.6*1.65
|
