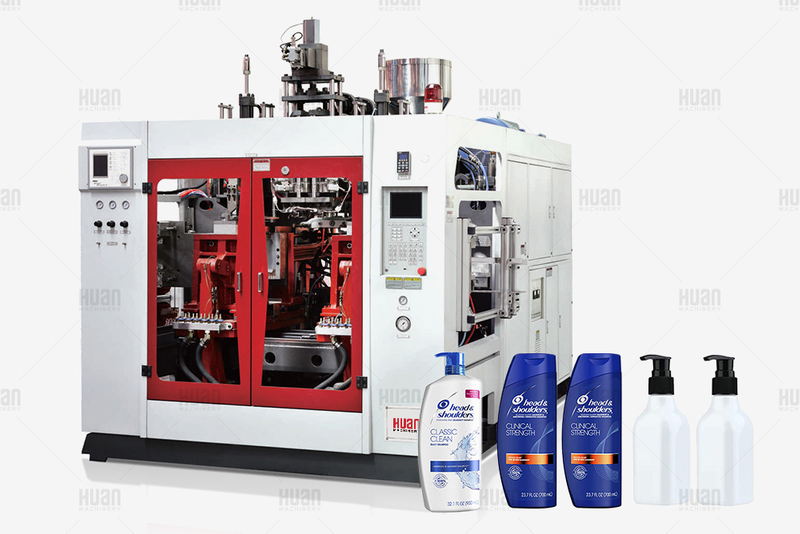

HDPE Shampoo Bottle Extrusion Blow Molding Machine

Share to:
Production line includes: mold, auto-loader, chiller, mixer, compressor, granulator, mold temperature controller, dryer, conveyor, leak tester, automatic bagging machine, high speed auxiliary equipment
  • HJS-70D/F
  • HUAN
  • HJS70D/F
  • shampoo bottle,hair care bottle, daily chemical bottle, HDPE hollow product blowing
Volume:
Material:
Layer:
Availability:


The extrusion blow molding machine is standard type machine with double station tie bar structure, The clamping structure is three or four tie bars direct locking structure with automatic lubrication system. The structure is simple and stable and it is convenient for plastics waste collection.

The whole machine adopts computer control, simple operation, reliable work, high degree of automation, good interchangeability of components,realize one machine multi-purpose. It can choose single and double mode-shifting models to meet different output requirements. It can be equipped with single head, double head, four head, multi-layer head, double transparent line head and servo wall thickness control head to meet the requirements of different products.


SPECIFICATIONS
HJS70D/F
Material
PE PP PVC PA...
Max container capacity
5L
Number of die
123,4,6
Machine Dimension(LxWxH)
3.6x2.2x2.36m
Total weight
5.5ton
CLAMPING UNIT

Clamping force
90kN
Platen openning stokes
180-480mm
Carriage stroke
450mm
Max mould size(WxH)
430x470mm/430x400mm
EXTRUSION UNIT

Screw diameter
70mm
Screw L/D ratio
24 L/D
(HDPE) Plasticizing capacity
70kg/h
Screw heating zone
3 zone
Screw heating power
14.1kw
Screw fan power
0.14kw
Extrusion motor power
18.5kw
DIE HEAD

Die head heating zone
3 zone
Power of die heating
6.5kw
ENERGY CONSUMPTION

Total power of machine
49.14kw
Power of oil pump motor
9.5kw
Air pressure
0.6-0.8 Mpa
Average energy consumption
28kw
Consumption compression air
1.2m3/min
Consumption cooling water
40L/min


mould platedie headblow pin and robot arm

Our-Service


Choosing the suitable machine: We have a professional team, electrical engineers, mechanical engineers, commissioning engineers...Our engineers have been in this field over 18 years, have rich experiences. According to the customer’s plastic products and requirements , we could offer good solution based on experiences. And we also could recommend the related auxiliary machines to get a whole production line.


Customer’s visit: Before playing the order, warmly welcome to visit our workshop if customer interests. We will introduce our machines on site.

Delivery time: we will finish manufacturing and testing within delivery time, make sure customer’s production schedule. During the production process, we also will share the production progress photos and testing video with customer.

Warranty time: our warranty time is 12months after the delivery. During this period, any quality problem of the machine, we will send the replacement parts by express freely. If the buyer meet any technical problems, we will provide the support through remote control.

Training, installation: when the machine reaches the buyer’s factory, the buyer could tell us, we will dispatch an engineer to the buyer’s factory to help install and test the machine until it runs normally. Meanwhile, we also could help train the customer’s employee.


客户1
客户2
客户3
客户4
客户5
客户6



1. who are we?
We are based in Jiangsu, China, start from 2011,sell to Africa(00.00%),Western Europe(00.00%),North America(00.00%),South America(00.00%),Southeast Asia(00.00%),Mid East(00.00%),South Asia(00.00%). There are total about 5-10 people in our office.

2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;

3.what can you buy from us?
Extrusion Blow Molding Machine and Related Auxiliary Machines,Injection Molding Machine and Related Auxiliary Machines

4. why should you buy from us not from other suppliers?
More than 12 years manufacturing and exporting experience. We are a company with producing and exporting as well. We have clients to all over the world, accordingly we know each market well. My factory is near Shanghai airport with convenient traffic.

5. what services can we provide?
Accepted Delivery Terms: FOB,CFR,CIF;
Accepted Payment Currency:USD,EUR;
Accepted Payment Type: T/T,L/C,Credit Card,Western Union,Cash;
Language Spoken:English,Chinese,Spanish
