A factory comparing jerry can equipment often reaches the same decision point: should it buy a single-station machine or a double-station machine? The double-station option appears faster because one side can cool while the other side receives the next parison. The single-station option appears simpler and may offer more room for larger molds or flexible tooling. Neither answer is automatically correct.
The correct choice depends on the jerry can size, cycle time, product mix, mold investment, order pattern, operator skill, downstream automation, and the financial value of additional output. A machine configuration should solve the factory’s production problem, not simply win a specification comparison.
This guide uses six operating scenarios rather than a universal recommendation.
First, Understand the Motion
In a single-station blow molding machine, one mold station performs the molding cycle. The parison is captured, blown, cooled, and released in one working position. The design can be mechanically straightforward and can provide generous mold space for certain products.

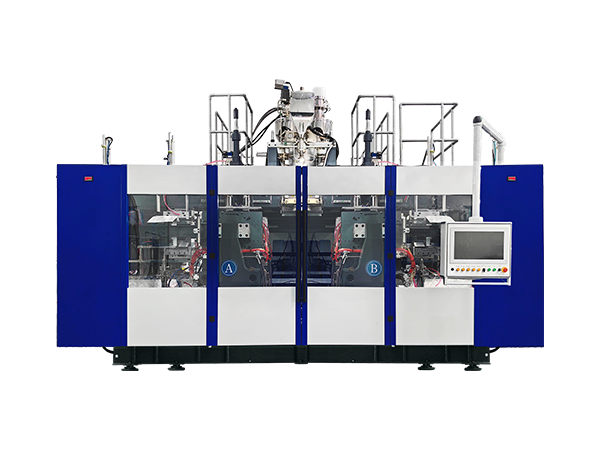

In a double-station machine, two mold stations alternate. While one station is cooling or completing part of the cycle, the other can move into position for the next parison. This arrangement can improve utilization of the extrusion system and increase output when the product, mold, and process are suited to the motion.
However, the second station adds molds or mold halves, moving mechanisms, control requirements, safety considerations, and maintenance points. The economic question is whether the added production value exceeds the added investment and operating complexity.
Scenario One: One Standard Jerry Can, Large and Repeating Orders
A double-station automatic jerry can blow molding machine can be attractive when the factory produces one stable design in long runs. Frequent production allows the company to use the additional station, and fewer mold changes reduce lost time.
The best candidates are products whose cooling and handling can be synchronized effectively. The extrusion output must be sufficient, and the downstream system must remove flash, cool, test, label, and pack the extra containers without creating a bottleneck.
Before choosing the faster configuration, calculate how many accepted jerry cans customers will buy each month. If demand uses only one shift of single-station capacity, the second station may remain economically idle. High theoretical speed has no value when the sales plan cannot absorb it.
Scenario Two: Many Products, Small Orders, and Frequent Mold Changes
A contract manufacturer may produce 5L, 10L, 20L, and 25L containers in different colors and designs. In this environment, changeover time and purge waste can matter more than maximum hourly output.
A single-station machine may provide a simpler operating routine and lower tooling duplication for some projects. The maintenance team may change one mold set, connect fewer services, and return to production more quickly. The factory can invest the saved capital in additional molds, faster color-change systems, leak testing, or another flexible machine.
This does not mean double-station equipment cannot handle multiple products. It means the buyer should calculate total productive hours after changeovers. A machine that is 30 percent faster during a run can still produce less over a week if changes are longer and orders are short.
Scenario Three: A Heavy 20L or 25L Chemical Jerry Can
Large or heavy containers need adequate clamping, mold space, parison control, and cooling. The product geometry may influence whether a single- or double-station mechanism is practical.
For a heavy chemical jerry can, quality priorities may include wall distribution, handle strength, outlet formation, and base stability. If the machine is pushed to cycle faster than the mold cooling and container handling allow, deformation or inconsistent trimming can increase.
The buyer should request trials based on the actual container weight. Compare not only pieces per hour but also wall-thickness consistency, scrap, cooling-water requirement, energy per accepted container, and the ability of the deflashing system to maintain quality.
Scenario Four: Limited Floor Space but High Demand
A double-station system may provide more output from one extrusion platform, which can be valuable when the factory has limited floor area. Yet the total footprint must include auxiliary equipment, operator access, conveyors, cooling, leak testing, material handling, and maintenance clearance.
A compact high-speed machine can create a larger downstream footprint. More output means more containers in cooling, inspection, and storage. The factory should draw the complete material flow rather than compare machine dimensions alone.
Another option is to use one single-station line initially and reserve space for a second line. Two independent machines provide redundancy: if one stops, the other may continue. A single double-station machine may be more efficient, but a major fault can stop all output. The business value of redundancy depends on customer commitments and maintenance capability.
Scenario Five: Strict Capital Budget and Uncertain Market Entry
For a company entering jerry can manufacturing, the risk is not only technical. Market demand may develop more slowly than forecast. A single-station line with the correct core quality features can reduce initial capital and allow the team to learn extrusion blow molding.
The company can focus on a small product family, establish quality, win customers, and measure real demand. When capacity becomes the bottleneck, it can add a second machine or invest in higher automation.
The danger is buying a machine that is too limited. The initial model should still have suitable extrusion capacity, parison control, mold space, auxiliary interfaces, and component quality. “Lower investment” should mean a phased project, not a machine that cannot meet the target product.
Scenario Six: High Labor Cost and Integrated Automation
When labor cost is high, a double-station machine integrated with automatic deflashing, conveyors, leak testing, and data collection can reduce manual handling per container. The benefit is strongest when the entire line is balanced.
If containers still require manual trimming, carrying, inspection, and packing, the output increase may simply move labor to another station. Automation should be evaluated as a flow. Count operators for the complete line and identify the slowest activity.
The factory also needs technicians capable of maintaining moving stations, sensors, hydraulic or servo systems, mold services, and synchronization. Higher automation can improve consistency, but only when preventive maintenance and spare-parts planning are strong.
Comparison by Decision Factor
Output
Double-station machines can increase potential output by using cooling time more effectively. Actual gain depends on extrusion capacity, container size, mold cooling, motion time, and downstream equipment. Single-station output may be sufficient for moderate demand or heavy products.
A double-station configuration may require more tooling components and more setup work. Confirm exactly what is included. Single-station tooling can be less complex in some applications, making it attractive for frequent product changes.
Changeover
Single-station systems may offer simpler changes, but machine design matters more than the label. Compare mold access, lifting method, quick connections, alignment, recipe storage, and purge procedure.
Maintenance
Double-station equipment has additional moving parts and synchronization. A well-built system can be reliable, but the maintenance team needs training. Single-station designs may be easier for factories with limited technical resources.
Energy and Material Efficiency
Do not assume one configuration always uses less energy. Calculate electricity, cooling, compressed air, and scrap per accepted container. A double-station machine may use the extrusion system efficiently at high output, while a single-station machine may operate economically at lower demand.
Production Risk
One double-station machine concentrates production in one asset. Multiple single-station machines can provide redundancy and scheduling flexibility, but they require more floor space, auxiliary equipment, and possibly more operators.
The Calculation That Matters
A practical comparison uses annual contribution rather than hourly speed.
Annual accepted output = rated accepted output per hour × productive hours after changeovers and downtime
Annual value of extra capacity = additional accepted containers × contribution margin per container
Then subtract the added costs of molds, energy, maintenance, labor, financing, and inventory. If the market can use the extra output and the margin supports the investment, double station may be the stronger choice. If demand is uncertain or product variety is high, flexibility may produce a better return.
Questions to Ask the Manufacturer
Ask the jerry can blow molding machine manufacturer to run the comparison using your product:
· What output is expected at the agreed container weight?
· How many molds and change parts are included?
· What is the changeover procedure and estimated time?
· What cooling-water conditions are required?
· What trimming and leak-testing equipment is matched to the output?
· How many operators are needed for the complete line?
· What are typical maintenance tasks for each station?
· Can production recipes be stored and recalled?
· What expansion options are available?
A supplier should be able to explain why the proposed station configuration fits the product and sales plan.
Choose the Production Model, Then Choose the Machine
Single station is not the “basic” answer, and double station is not always the “advanced” answer. Each is a production architecture.
Choose single station when the business values flexibility, simpler tooling, moderate capacity, phased investment, or independent machines. Choose double station when stable high-volume orders, suitable cycle characteristics, strong downstream automation, and capable maintenance allow the second station to create measurable value.
The final decision should be based on accepted annual output, unit cost, product mix, and business risk. That approach turns a technical comparison into an investment decision and helps the factory select an automatic jerry can making machine that will be used effectively rather than merely admired on a specification sheet.
