A turnkey 220L drum project is often presented as a machine purchase, but the machine is only the center of a much larger system. The factory also needs resin handling, cooling, compressed air, molds, trimming, opening preparation, leak testing, scrap recovery, component storage, laboratory controls, maintenance access, and enough warehouse space for bulky finished drums.
The difference between a successful plant and an expensive installation is usually decided before the equipment is shipped. Clear product specifications, a balanced layout, realistic utilities, defined responsibilities, and measurable acceptance criteria reduce delays and protect the investment.
This planning guide is written for companies building a new 200L or 220L chemical drum factory, expanding from smaller containers, or replacing an older line with a full automatic 220L plastic drum production line.
Project Brief: The Document That Controls Every Later Decision
Start with a written project brief. It should state what the plant will manufacture and what the supplier is expected to deliver.
Include:
· Drum capacity and design type
· Closed-top, open-head, or both
· Double L-ring or other geometry
· Target drum weight
· Single-layer, two-layer, or three-layer structure
· Resin and additive strategy
· Neck, bung, lid, gasket, and closure design
· Color range and expected change frequency
· Required output per shift and per year
· Intended customer industries
· Product tests and approval program
· Local voltage, frequency, climate, and utility conditions
· Workshop dimensions and ceiling height
· Desired automation level
· Installation, training, and service expectations
This document prevents scope drift. It also gives every supplier the same basis, making quotations easier to compare.
Layout Zone 1: Raw Material Receiving and Preparation
HDPE resin, masterbatch, additives, and approved regrind need controlled storage. The layout should minimize manual bag movement and prevent contamination.
A small plant may use loaders and local hoppers. A high-volume plant may justify silos, centralized conveying, automatic dosing, and recipe management. Multi-layer production requires separate material streams and clear identification.
Place the resin area close enough to the blow molding machine for efficient conveying but away from dust, water, outdoor contamination, and finished-goods traffic. Provide space for cleaning, calibration, and material sampling.
The recycling route should be planned at the same time. Flash and approved scrap move to a crusher, then to controlled storage or return dosing. Unidentified scrap needs a separate quarantine area.
Layout Zone 2: The Large Drum Blow Molding Cell

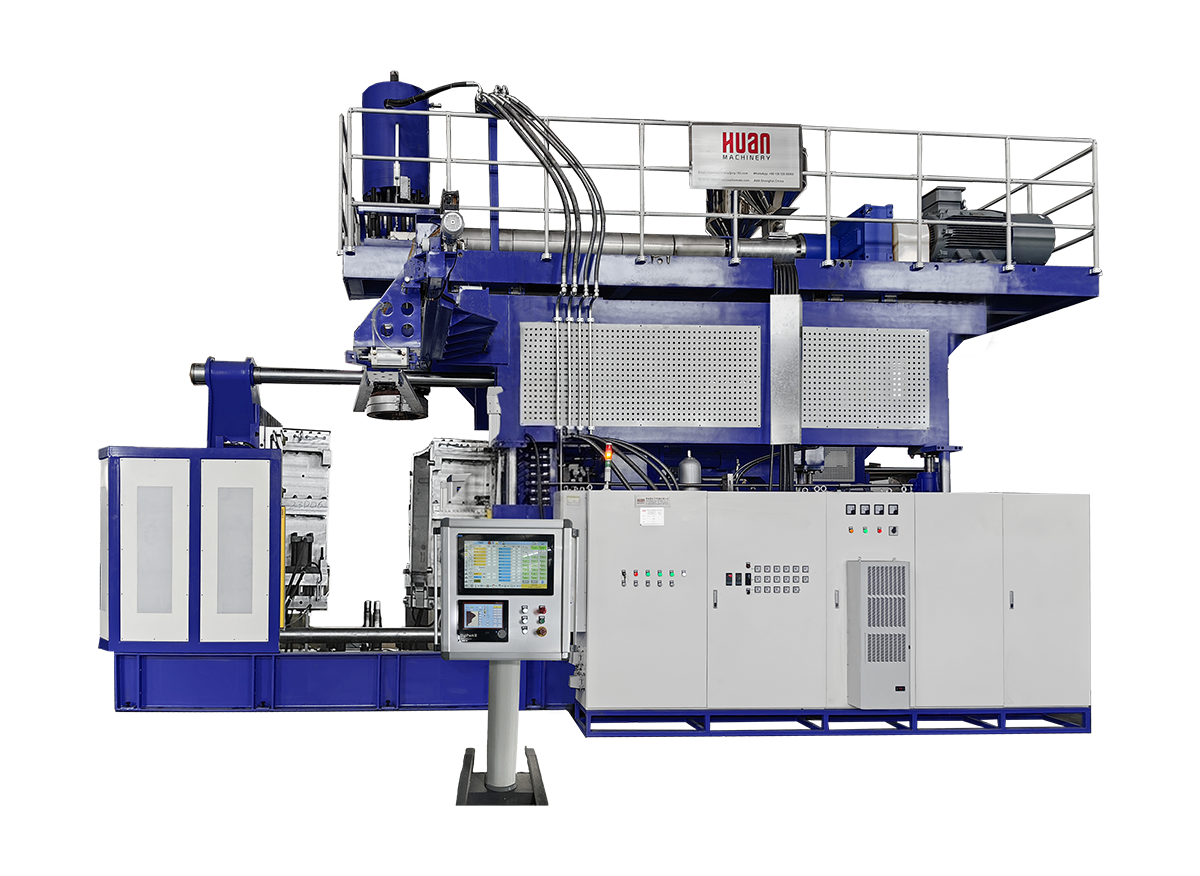

The core cell includes the extrusion blow molding machine, accumulator head, mold, mold-handling space, control cabinet, hydraulic or electric systems, and operator access.
Large machines require substantial ceiling height and foundation planning. The layout should show the maximum machine height, mold lifting route, service clearance, platform access, and safe escape paths.
Do not place walls, columns, or utilities where maintenance teams need to remove an extruder screw, head component, cylinder, motor, or mold. Saving a small amount of floor space during design can create expensive maintenance problems later.
The cell should also allow observation of the parison, mold area, and container ejection while maintaining guarding and safety interlocks.
Layout Zone 3: Cooling and Process Utilities
Cooling equipment may include chillers, cooling towers, pumps, tanks, filters, and separate circuits for the mold, machine, and hydraulic system. The utility design should be based on heat load and local climate.
A closed-loop system can improve cleanliness and temperature stability. Water treatment may be necessary to prevent scale and corrosion. Install flow and temperature monitoring so operators can diagnose performance loss.
Compressed air must meet the required pressure, flow, and quality for blowing, machine functions, and leak testing. The system may need compressors, dryers, filters, receivers, and ring piping. Peak demand can occur during blowing, so average compressor capacity alone may be misleading.
Electrical design should include the main machine and all auxiliaries: loaders, mixers, pumps, chiller, compressor, crusher, conveyors, trimming, testers, and lighting. Confirm simultaneous load, starting current, transformer size, cable routes, grounding, and local standards.
Layout Zone 4: Deflashing, Trimming, and Opening Preparation
After molding, the hot drum moves to finishing. Depending on the design, the line may remove top and bottom flash, trim pinch-off areas, drill or finish openings, prepare an open-head rim, inspect the neck, and install closures.
This zone should be close enough to avoid excessive handling but separated enough for safe access and scrap collection. Hot containers need support to prevent deformation. Conveyors should contact stable areas of the drum.
If flash is removed manually, analyze ergonomics and cycle time. Large flash pieces can be heavy and sharp. Automatic systems reduce labor but need repeatable tooling and guarding.
Drilling and cutting operations should control chips. Debris near sealing surfaces can cause leaks or contaminate the customer’s product. Include extraction and cleaning where necessary.
Layout Zone 5: Online Inspection and Leak Testing
Place routine quality checks before finished-goods accumulation. The station may include automatic or semi-automatic leak testing, weight verification, dimensional gauges, visual inspection, coding, and data collection.
The leak tester should match the drum design and target throughput. Define test pressure, stabilization time, test duration, sensitivity, reject handling, and calibration. Provide a safe area for rejected drums so they do not re-enter the accepted flow.
Quality technicians also need a laboratory or controlled inspection area for wall-thickness measurement, closure fit, material checks, and periodic performance tests. The laboratory does not need to be large, but it should be designed into the plant rather than improvised after production begins.
Layout Zone 6: Components, Packing, and Warehouse
Closed-top drums need plugs, gaskets, caps, and possibly labels or seals. Open-head drums need lids, gaskets, and closure rings. Store these components in a clean, identified area near assembly.
Finished drums consume a large volume. Calculate warehouse capacity using real pallet patterns, stacking limitations, production rate, dispatch schedule, and quality-release time. Provide forklift routes that do not cross operator workstations.
The dispatch area should support inspection, counting, documentation, and protection from weather. If drums are shipped immediately, synchronize production with logistics. If inventory is held, include fire and warehouse requirements in the site plan.
Equipment Responsibility Matrix
A turnkey project needs a written boundary. Create a table with four columns: equipment or service, supplier responsibility, buyer responsibility, and interface requirement.
The list should cover:
· Blow molding machine
· Mold and inserts
· Material loading and dosing
· Cooling system
· Compressor and air treatment
· Automatic deflashing
· Opening preparation
· Conveyors and handling
· Leak testing
· Crusher and scrap return
· Closures and component equipment
· Electrical distribution
· Foundations and lifting
· Installation tools
· Trial material
· Factory acceptance testing
· Shipping and unloading
· Installation and commissioning
· Training
· Spare parts
· Product testing and certification responsibility
This matrix prevents the phrase “not included” from appearing during installation.
Staffing and Skills Plan
Automation changes labor quantity, but not the need for expertise. A plant may require production operators, material handlers, quality inspectors, mechanical and electrical maintenance, mold technicians, supervisors, and warehouse staff.
The blow molding team should understand material preparation, temperature control, accumulator-head operation, parison programming, mold setup, cooling, trimming, and defect correction. Maintenance staff need machine drawings, component lists, lubrication schedules, hydraulic knowledge where applicable, and control-system access.
Training should be divided into operation, process, maintenance, quality, and safety. Record who has been trained and which tasks they are authorized to perform.
For a new factory, identify a core team before factory acceptance testing. Those employees should see the machine run at the supplier’s facility, participate in trials, and carry knowledge back to the site.
Factory Acceptance Test: Prove the Agreed Machine
The FAT should use an agreed drum specification, mold, resin, weight, layer structure, and test method. The protocol should define:
· Warm-up and setup conditions
· Production duration
· Cycle measurement
· Accepted output
· Drum weight variation
· Dimensions
· Wall-thickness checks
· Surface and flash quality
· Leak performance
· Automatic station operation
· Alarm and safety checks
· Documentation and spare-parts review
A short video of the machine cycling is not a complete FAT. The purpose is to confirm repeatability and identify open issues before shipping.
Document every unresolved item and define whether it must be corrected before shipment or during site commissioning.
Site Acceptance Test: Prove the Complete Plant
After installation, the SAT verifies the line under local power, water, air, climate, operators, and materials. It should confirm mechanical installation, utility performance, safety, training, output, product quality, and handover documents.
Do not expect the first hour to represent final performance. The ramp-up plan should include recipe optimization, operator practice, maintenance checks, and controlled increase of speed.
Measure accepted output over a meaningful period. Track downtime, scrap, energy, cooling, and downstream balance. If the machine meets cycle time but the plant misses output, identify whether finishing, testing, material supply, or handling is the bottleneck.
Quality and Approval Strategy
For industrial or dangerous-goods packaging, the drum manufacturer may need to validate the final design through applicable testing and approval. The project plan should identify who designs the drum, who supplies components, who conducts tests, and who maintains production records.
The equipment supplier can support repeatable molding and may provide testing stations, but product approval is a separate responsibility. Avoid ambiguous claims that the line itself automatically creates certified drums.
Once the design is approved, production controls must maintain it. Resin, weight, layers, mold, openings, closures, and process settings should be controlled. Changes need review before implementation.
Plan Expansion Before the First Machine Is Anchored
Reserve practical space and utility capacity for growth. Future expansion may include a second mold, another drum style, faster trimming, additional leak testing, automated component installation, a second blow molding machine, or centralized material handling.
The first phase should not pay for every possible future feature, but the layout should avoid blocking them. Extra electrical panel space, cooling connections, conveyor interfaces, and warehouse planning can reduce later cost.
A modular full production line can be a strong strategy: begin with the core equipment required for quality, then automate the bottlenecks revealed by real demand.
A Turnkey Plant Is Ready When Production Is Repeatable
The project is not complete when the containers arrive on site or when the machine produces its first drum. It is complete when trained operators can run an agreed product, maintenance teams can service the equipment, quality staff can verify the drum, utilities support the target cycle, and the factory can produce accepted output predictably.
A strong 220L chemical barrel production line supplier should help the buyer connect all of these elements. The proposal should explain the process, layout, utilities, scope, acceptance, and service—not only the main machine specification.
With disciplined planning, a turnkey 220L drum manufacturing plant becomes more than a large capital asset. It becomes a controlled production system that can serve chemical, lubricant, and industrial packaging customers while providing a clear path for future growth.
