Product Overview

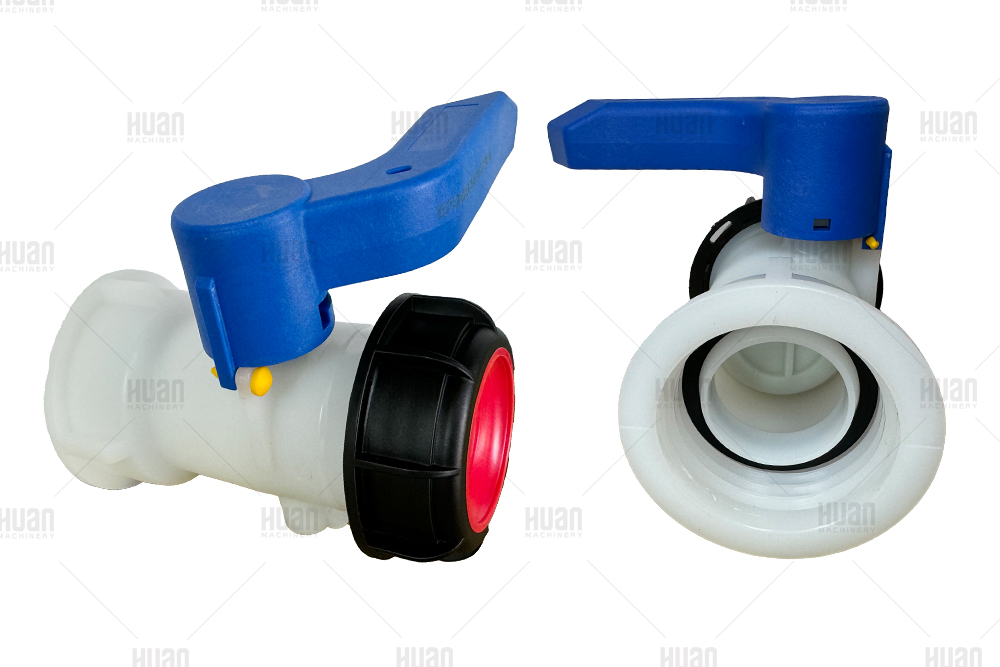

Our 1.5-inch IBC Plastic Butterfly Valve is precision-engineered for seamless integration with IBC totes, offering exceptional chemical resistance, lightweight durability, and compliance with industrial safety standards. Crafted from high-performance polymers, this valve is ideal for aggressive chemicals, food-grade liquids*, and high-purity industrial processes.
Key Features & Technical Specifications
1. Advanced Material Construction
PTFE: Universal chemical compatibility (resistant to virtually all liquids).
EPDM: Optimal for water-based solutions (excludes oils).
FPM (Viton®): Resists organic solvents, acids, and oils.
Body: High-Density Polyethylene – Matches IBC tote thermal expansion properties for leak-free performance.
Valve Disc: Polypropylene (PP) reinforced with 30% fiberglass – Delivers rigidity and impact resistance.
Seal Options:
Anti-Static Design: Embedded conductive material (surface resistivity 10⁹–10¹⁰ Ω) + optional grounding wire for flammable environments.
2. Optimized IBC Tote Compatibility
Thread Standards: DN40 (1.5"), DN50 (2"), DN80 (3") – Matches global IBC tote specifications.
Anti-Splash Diversion Tube:
Ergonomic Handle:
IBC valve gasket type
IBC valve gasket materials are generally EPDM,NBR.FMP,PEP.EPDM is more common, acid and alkali resistant but not oil resistant,nitrile rubber oil resistant. Gaskets are imported from Germany.
IBC Valve installing type
1.one piece screwing type IBC valve
one piece IBC valve must be screwed with the handle facing upwards.Strong sealing, not easy to leak.
2.two pieces screwing type IBC valve
two pieces IBC tank valve is normal. The mouth does not need to be adjusted, more convenient.
3.Welding type IBC valve
Weld type IBC valve is a Type C interface. This kind of foreign use is very much, better sealing, less cost.
IBC Valve size
| S/N | Product code | Name | Application | Packing quantity |
| 1 | Q75FTS-80S-EPDM/FPM/NBR | DN80 Movable screw thread ball valve-A | Suitable for the IBC tank with the 80mm outlet | 40 PCS/BOX |
| 2 | Q75FTS-50S-EPDM/FPM/NBR | DN50 Movable screw thread ball valve-B | Suitable for the IBC tank with the 50mm outlet | 40 PCS/BOX |
| 3 | Q75FTS-50KJ-EPDM/FPM/NBR | DN50 Movable screw thread ball valve-C | Suitable for the IBC tank with the 50mm outlet | 40 PCS/BOX |
| 4 | Q75YTS-50S-EPDM/FPM/NBR | DN50 Integrated threaded ball valve-B | Suitable for the IBC tank with the 50mm outlet | 40 PCS/BOX |
| 5 | Q75YTS-50KJ-EPDM/FPM/NBR | DN50 Integrated threaded ball valve-C | Suitable for the IBC tank with the 50mm outlet | 40 PCS/BOX |
| 6 | Q75W-50S-EPDM+FPM | DN50 Welded ball valve-B | Suitable for the IBC tank with the 50mm outlet | 36 PCS/BOX |
| 7 | Q75W-50KJ-EPDM+FPM | DN50 Welded ball valve-C | Suitable for the IBC tank with the 50mm outlet | 40 PCS/BOX |
| 8 | D75YTS-50S-EPDM | DN50 Integrated threaded butterfly valve | Suitable for the IBC tank with the 50mm outlet | 36 PCS/BOX |
| 9 | D75FTS-50S-EPDM | DN50 movable screw thread butterfly valve | Suitable for the IBC tank with the 50mm outlet | 36 PCS/BOX |
| 10 | D75W-50S-EPDM+FPM | DN50 Welded butterfly valve（Conducting static electricity） | Suitable for the IBC tank with the 50mm outlet | 36 PCS/BOX |
| 11 | D75W-50S-EPDM+FPM | DN50 Welded butterfly valve | Suitable for the IBC tank with the 50mm outlet | 36 PCS/BOX |
| 12 | D100YTS-100S-EPDM | DN100 Integrated threaded butterfly valve | Suitable for the IBC tank with the 50mm outlet | 20 PCS/BOX |
IBC Valve Package
IBC valve is usually 40 pieces per carton. Before delivery, we will cover the waterproof PP bag inside the carton, and paste labels on the outside of the carton, so that you can clearly know the IBC valve type inside the box.
How to Choose IBC Valve?
1.What is the size of IBC tank discharge port?
Select an IBC valve based on its caliber,DN50 or DN80
2.What material is filled in IBC tank? What are the features?
Choose the right gasket according to the characteristics of the raw material of the filling, which needs to be oil resistant, or acid and alkali resistant, and so on.
3.What is the installation method of the IBC valve?
One-piece, two pieces, welded
