Custom IBC tank production with 1000L blow molding machine

Views: 2     Author: Site Editor     Publish Time: 2023-04-04      Origin: Site

facebook sharing button
twitter sharing button
line sharing button
wechat sharing button
linkedin sharing button
pinterest sharing button
whatsapp sharing button
kakao sharing button
snapchat sharing button
sharethis sharing button

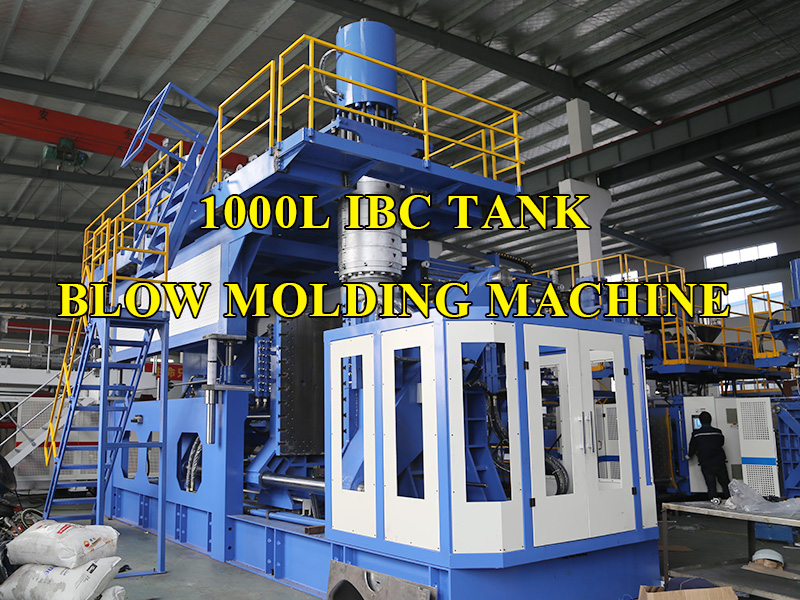

Custom IBC tank production with 1000L blow molding machine

IBC tank is the future development trend of packaging containers, and has become the standard product of the new generation of liquid packaging after steel drums and plastic drums.It is widely used in various Class II and Class III liquid packaging, and can also be used in edible liquid packaging.

ibc tank machine electrical system

IBC tank blow molding machine production equipment is the main product of our company. This equipment is mainly used to produce and process some large civil barrels, food packaging barrels, chemical solution packaging barrels, IBC tote, large blow molding pallet, etc. The blow molding machine can produce single-layer, double-layer and multi-layer composite IBC tank. Recycled materials can be added in the middle of the composite packaging container.

ibc tank mould

The clamping system of IBC tank blow molding machine is a fixed mould bar, the extrusion system is a hard tooth surface reducer, and the frequency converter is imported from Japan. The die head system adopts accumulator type die head, hydraulic valves, seals, and electro-hydraulic proportional control are all advanced technology products with famous brand. The control system is composed of PLC imported from Japan, Moog touch screen, PLC automatic temperature control module, and imported electrical components. Yuken servo motors can save energy by 40-80% on the basis of the original, which greatly saves production costs.

clamping system

IBC tank blow molding machine parameters

Specification

BSM135Z-1000L

Max product volume (L)

1000L IBC

Machine weight (T)

55

Machine size(m)

9.0*6.5*7.8

Extrusion unit


Screw diameter (mm)

135

Length/Diameter ratio

30/1

Heating zone No. (pcs)

6

Heating power (kw)

126

Cooling fan No. (pcs)

6

Fan power (kw)

0.78

Extrusion motor power (kw)

160

Plasticizing capacity (kg/h)

375

Die head


Head type

accumulating

Accumulating volume (L)

IBC special

Max ejection weight (kg)

-

Heating Zone No. (pcs)

-

Heating power (kw)

56

Max die diameter (mm)

-

Clamping unit


Clamping force (KN)

2000

Platen size (mm)

1600*1600

Platen opening stroke (mm)

1200-2600

Max mould size (mm)

1500*1500

Mould thickness (mm)

1200

Total power (kw)

320

Average energy consumption (kw)

120

IBC tank blow molding machine advantages

1. Customized according your requirements: The ibc tank blow molding machine can produce 1000L container as your request,including the size, shape, capacity, and material of the drums, as well as the number of layers and their properties such as anti-static and anti-corrosive etc.

2. Good quality control : By customizing your IBC drum production with a 1000L blow molding machine, you can achieve greater control over the quality of the finished product. This includes the strength, durability, and chemical resistance of the drum, which are critical for safe and reliable transportation and storage of hazardous and sensitive materials.

3. Improved production efficiency: By optimizing your IBC drum production with a 1000L blow molding machine, you can improve your production efficiency and reduce your overall costs. This includes reducing material waste, improving cycle times, and increasing your production volume.

4. Enhanced product performance: By customizing your IBC drum production with a 1000L blow molding machine, you can enhance the performance of your products in various ways. This includes improving the thermal insulation, reducing the risk of product contamination, and enhancing the product aesthetics and branding.

5.Competitive advantage: By customizing your IBC drum production with a 1000L blow molding machine, you can differentiate your products from your competitors and gain a competitive advantage in the market. This includes offering unique features and benefits that meet the specific needs of your customers.


It's important to work with a knowledgeable and experienced supplier of 1000L blow molding machines. 1000L machine is a star product in our HUAN MACHINERY. We have more than 50 factories in China using our blow molding machines.They can guide you through the selection and customization process and provide ongoing support to help you maximize your production efficiency and quality.


Customizing your IBC tank production with 1000L blow molding machine is a smart investment for any manufacturer looking to improve their product quality, efficiency, and competitiveness. By tailoring your production to your specific needs and leveraging the advanced capabilities of a 1000L blow molding machine, you can achieve optimal performance and results for your IBC drum products.
