1.5 Inch IBC Butterfly Valve for Safe and Controlled Liquid Discharge

Intermediate Bulk Containers are widely used for storing and transporting chemicals, food-related liquids, detergents, fertilizers, lubricants and other industrial materials.

A complete IBC container normally consists of an HDPE inner tank, a protective steel cage, a pallet, a filling lid and a discharge valve. Among these components, the valve controls how the liquid leaves the container and therefore has a direct influence on dispensing efficiency, leakage prevention and operator safety.

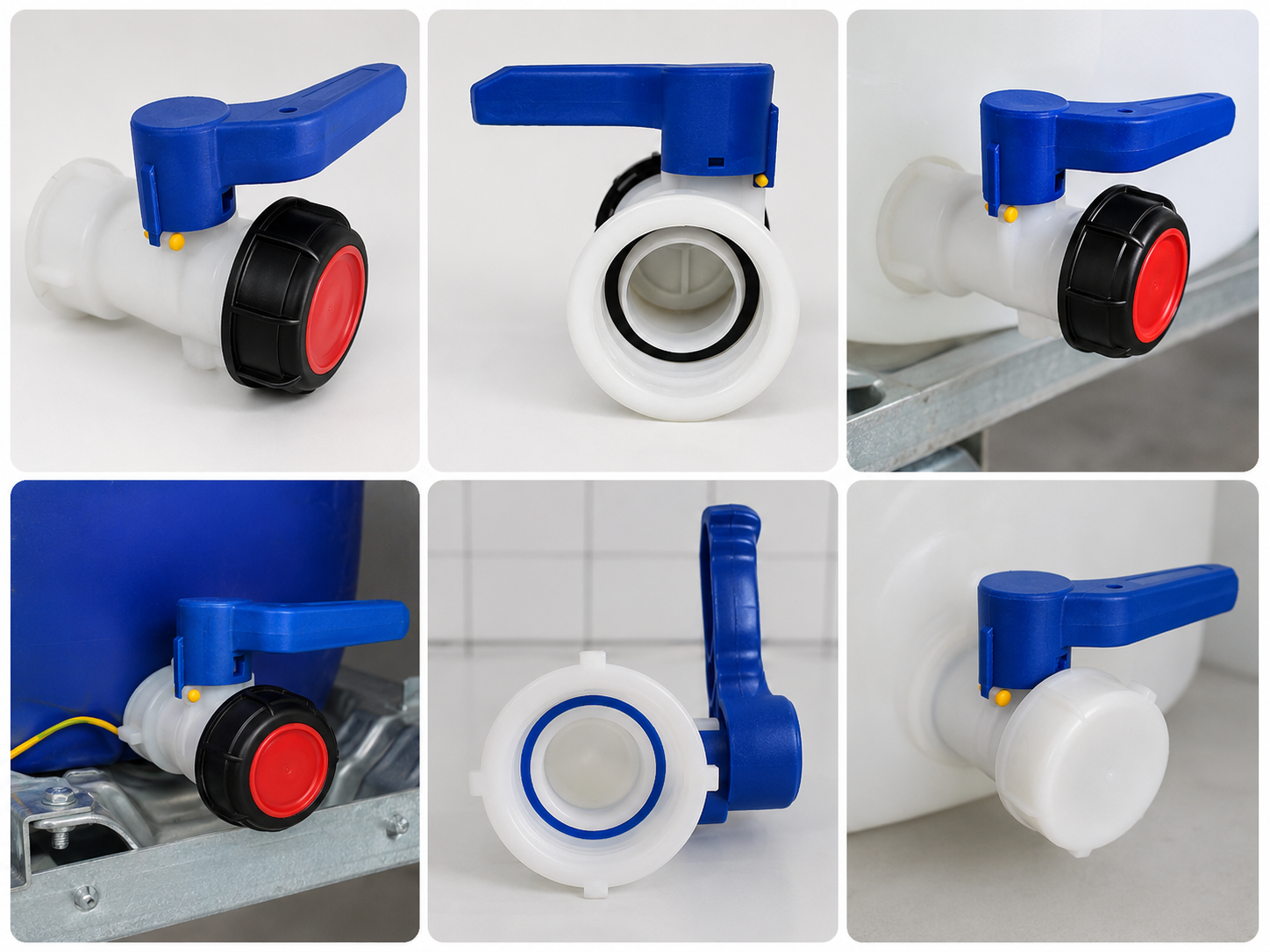

The 1.5 inch IBC butterfly valve is designed for controlled discharge from compatible IBC tanks and totes. It combines lightweight plastic construction with a simple quarter-turn operating mechanism, making it suitable for industrial filling, transfer and dispensing applications.

The available valve configuration uses a corrosion-resistant plastic body and can be supplied with different sealing materials according to the liquid being handled. Threaded and welded installation styles are available, while OEM and ODM orders can be supported for distributors, IBC manufacturers and industrial packaging users.

What Is an IBC Butterfly Valve?

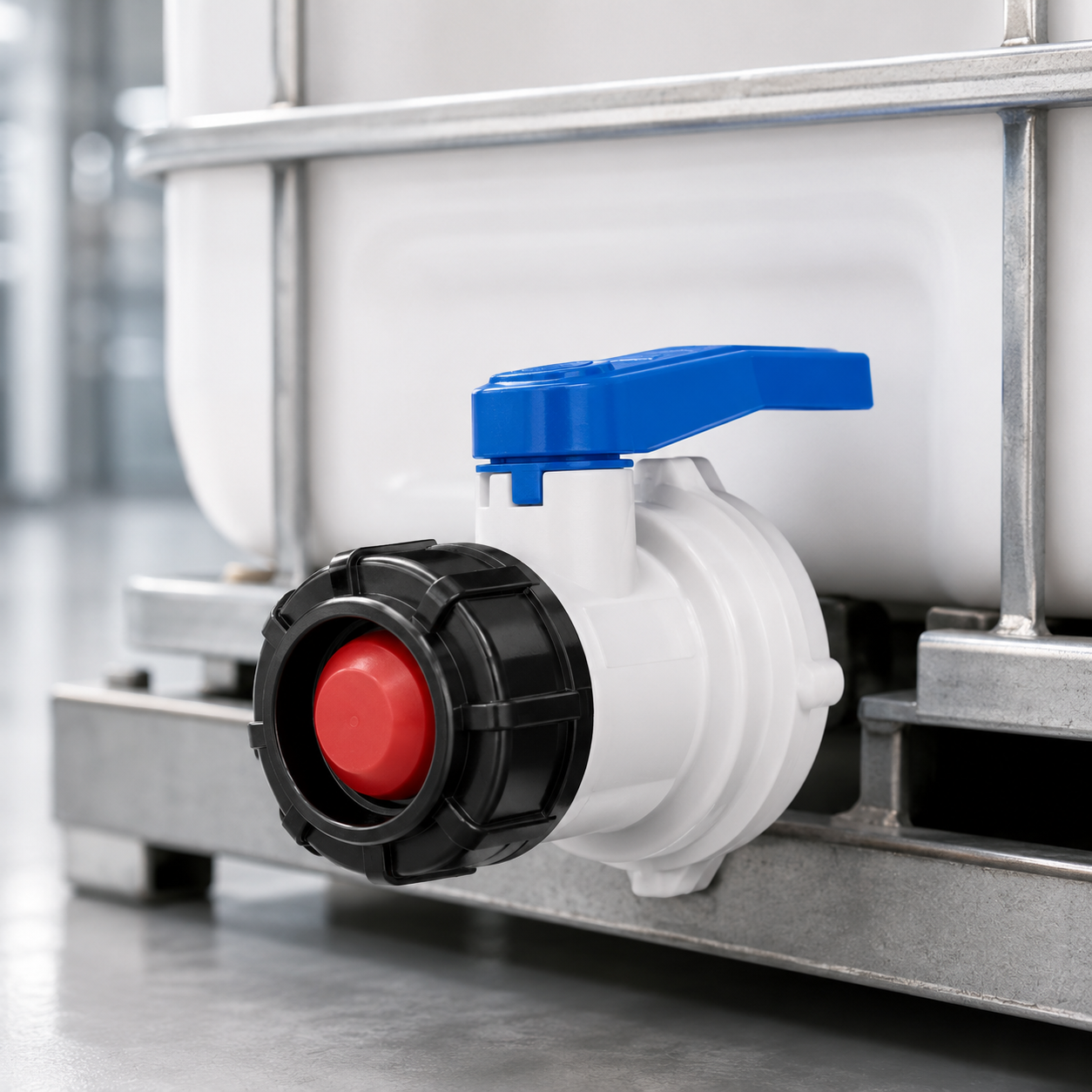

An IBC butterfly valve is installed at the lower outlet of an Intermediate Bulk Container.

Inside the valve is a rotating disc. When the handle is turned, the disc rotates to open or close the liquid passage.

This quarter-turn design provides fast operation compared with valves that require multiple turns. The user can quickly start, stop or regulate discharge from the tank.

IBC butterfly valves are commonly used because they offer:

• Simple manual operation

• Compact valve construction

• Fast opening and closing

• Controlled liquid discharge

• Low overall weight

• Compatibility with common IBC outlet designs

• Convenient replacement and maintenance

The 1.5-inch size is generally associated with a DN40 nominal connection, although buyers should confirm the actual thread, outlet diameter and tank-neck design before ordering. The broader product range also includes DN50 and DN80 valve options for larger IBC outlets.

Corrosion-Resistant Plastic Construction

The valve is designed with a plastic body suitable for use with many industrial liquids.

The product page identifies a polyethylene valve body and describes the body construction as high-density polyethylene. HDPE is widely selected for IBC components because it provides low weight, impact resistance and compatibility with the thermal behavior of many HDPE inner tanks.

The valve disc may be manufactured from polypropylene reinforced with approximately 30% glass fiber. This reinforced structure is intended to improve rigidity and resistance to mechanical impact during operation.

Plastic construction can provide several advantages:

• Resistance to rust

• Lower weight than many metal valves

• Easier handling during assembly

• Compatibility with plastic IBC tanks

• Reduced maintenance in corrosive environments

• Suitability for many water-based and chemical products

However, no valve material is suitable for every liquid.

The chemical concentration, temperature, exposure time and storage conditions must all be considered before confirming compatibility.

EPDM Seal for Water-Based Liquids

The standard product description lists an EPDM rubber seal.

EPDM is commonly used for water-based solutions and offers resistance to many acids and alkaline liquids. However, it is generally not recommended for oils and certain hydrocarbon-based products.

An EPDM gasket may be considered for:

• Water

• Water-treatment liquids

• Selected detergents

• Diluted acids

• Diluted alkaline solutions

• Agricultural liquids

• Other compatible water-based products

The suitability of the gasket should be confirmed using the exact liquid composition.

For example, two products may both be described as cleaning chemicals but contain completely different solvents or additives. A gasket that performs well with one formulation may swell, soften or lose sealing performance with another.

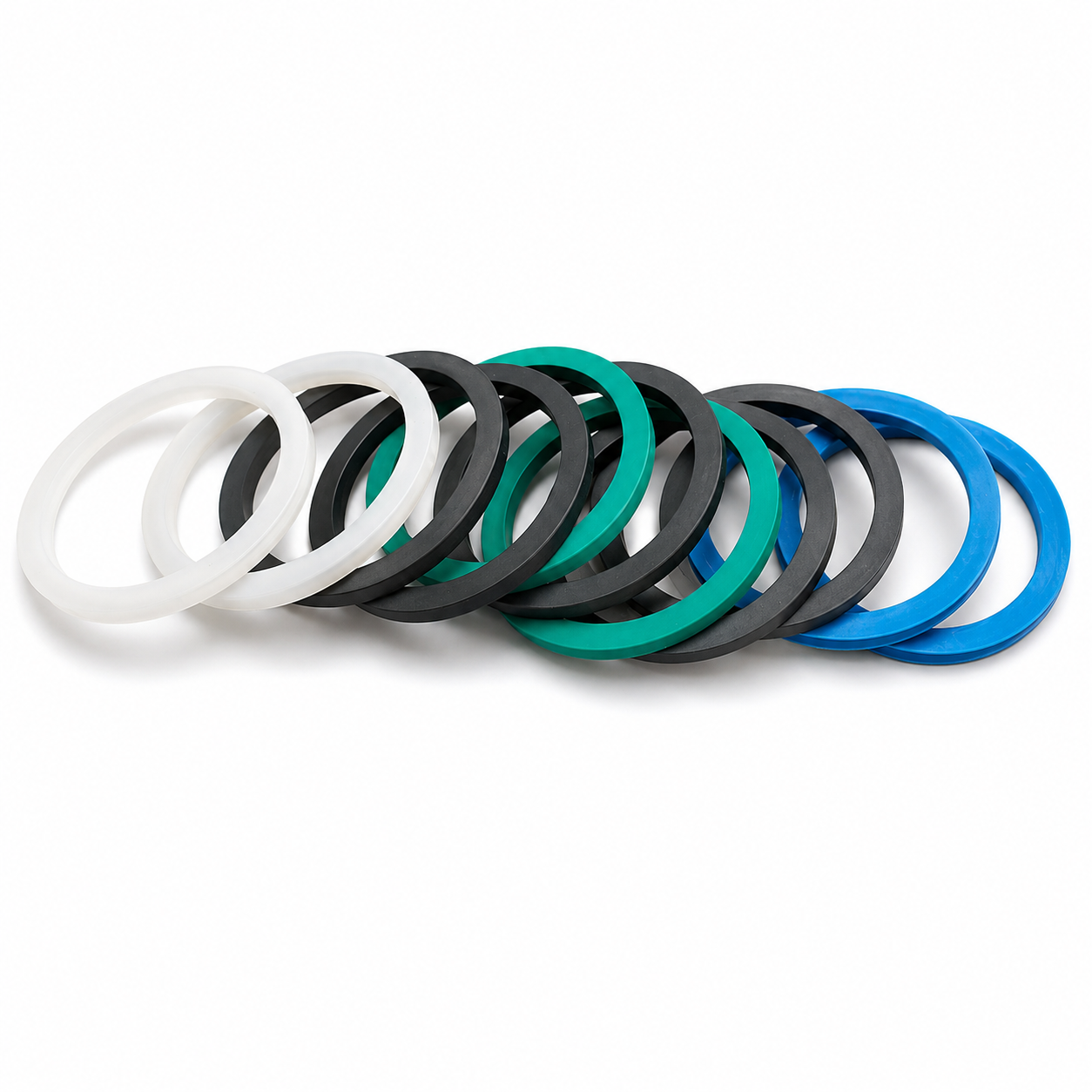

Alternative Gasket Materials

Different liquids require different sealing materials.

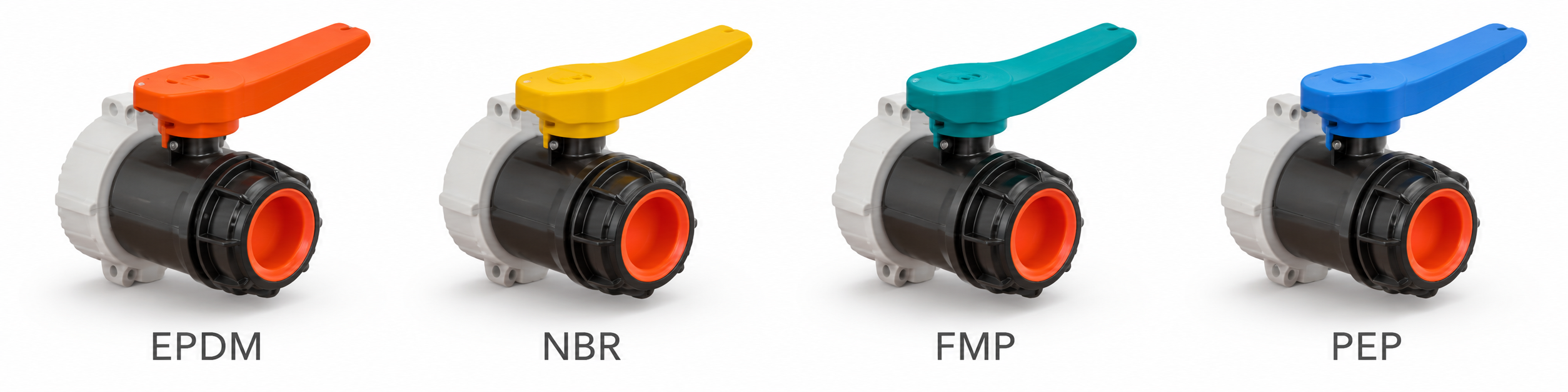

In addition to EPDM, the product range describes several gasket options.

NBR seals

NBR, also known as nitrile rubber, is commonly selected for oils and certain petroleum-based liquids. It may be more appropriate than EPDM when the IBC tank contains lubricants or oily materials.

FPM seals

FPM, often associated with fluororubber materials such as Viton-type seals, can offer resistance to organic solvents, acids and oils under suitable conditions.

PTFE seals

PTFE provides broad chemical resistance and may be considered for demanding chemical-transfer applications. Final suitability still depends on the complete valve design, temperature and operating pressure.

When requesting a quotation, buyers should provide the name, concentration and temperature of the liquid. This allows the supplier to recommend a more appropriate gasket instead of selecting only by valve size.

Threaded and Welded Connections

The 1.5 inch IBC butterfly valve can be supplied with threaded or welded connections.

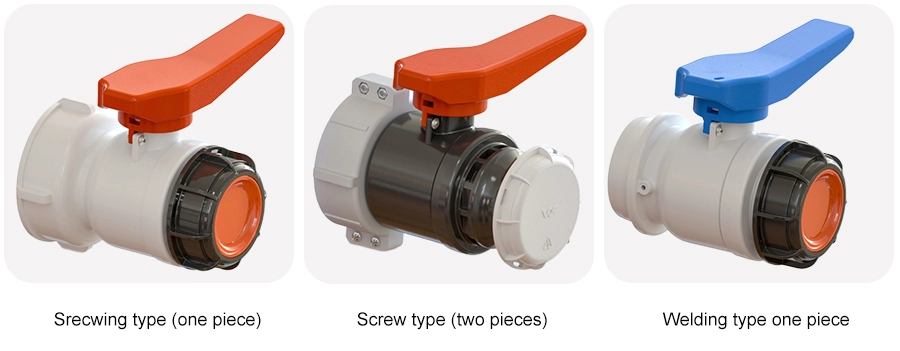

The broader IBC valve range includes three common installation styles.

One-piece threaded valve

A one-piece threaded valve is screwed directly onto the IBC tank outlet.

During installation, the handle must normally finish in the correct upward position. This type can provide strong sealing when the thread and valve are accurately matched.

Two-piece threaded valve

A two-piece or split-type valve offers more flexibility during installation.

Because the valve body and connection section can be adjusted separately, the installer can align the valve handle without relying entirely on the final position of the tank thread. This design can be convenient for replacement valves and reused IBC totes.

Welded valve

A welded valve is joined directly to the IBC inner tank during production.

The product page identifies the welded version as a Type C interface and highlights its sealing performance and cost advantages for suitable applications.

The correct installation type depends on whether the valve is being used for new IBC production, replacement, repair or container reconditioning.

Ergonomic Handle and Controlled Operation

The handle is one of the most frequently used parts of the valve.

The product is available with blue or red handle options.

Different handle colors can help manufacturers or warehouse operators identify:

• Different liquid categories

• Different gasket materials

• Vented or non-vented systems

• Customer-specific products

• Production batches

• Domestic and export specifications

The page describes an eccentric reinforced lever with a two-point hook structure. The valve also includes internal anti-slip grooves and an external splash-control structure intended to support more controlled dispensing.

Color should not be the only identification method. Technical labels, batch numbers and chemical information should also be used.

Anti-Static Valve Options

Certain flammable or sensitive liquids may require additional static-control measures.

The product range includes an optional anti-static design using conductive material with a stated surface resistivity of approximately 10⁹–10¹⁰ ohms. An optional grounding wire can also be considered for relevant operating environments.

An anti-static valve should be selected as part of a complete static-control system.

The tank, pallet, valve, transfer hose, filling equipment and grounding procedure must all be evaluated. Using one conductive component does not automatically make the entire transfer process safe for flammable liquids.

Applications involving combustible or hazardous materials should follow the appropriate engineering standards and local regulations.

Applications of the 1.5 Inch IBC Valve

The product is designed for IBC totes and can be used in chemical transfer, industrial liquid handling and compatible food-related applications.

Potential users include:

• IBC tank manufacturers

• Chemical producers

• Agricultural chemical companies

• Fertilizer suppliers

• Food-ingredient processors

• Detergent manufacturers

• Water-treatment companies

• Packaging distributors

• IBC reconditioning companies

• Industrial liquid exporters

For food-related use, buyers should confirm the resin, seal, production environment and required compliance documents before purchasing.

The term “food-grade” should be supported by the specific material certificates required for the target country and application.

How to Choose the Correct IBC Valve

Selecting an IBC valve requires more than confirming that it looks similar to the existing product.

Before ordering, buyers should check three main factors.

1. Confirm the IBC outlet size

Determine whether the tank outlet is DN40, DN50, DN80 or another specification.

Measure the thread diameter, pitch and connection profile. A 1.5-inch valve will not automatically fit every small IBC outlet.

2. Identify the packaged liquid

Provide the chemical name, concentration, temperature and whether the product contains oil, solvents, acids or alkaline materials.

This information determines whether EPDM, NBR, FPM, PTFE or another sealing material should be selected.

3. Confirm the installation method

Choose between:

• One-piece threaded connection

• Two-piece threaded connection

• Welded connection

The product page specifically recommends choosing the valve according to the discharge-port size, filling material and installation method.

Information to Provide for a Quotation

For a more accurate quotation, buyers should send:

• Valve size

• IBC outlet diameter

• Thread dimensions

• Existing valve photographs

• Tank outlet photographs

• Required installation type

• Packaged liquid

• Liquid temperature

• Required gasket material

• Handle color

• Required quantity

• Destination country

• Packaging requirements

• OEM logo or labeling requirements

The product supports bulk OEM and ODM orders, with a listed minimum order quantity of 10 units. Payment options include T/T and letters of credit, while international delivery may be arranged through logistics providers such as DHL or FedEx for suitable orders.

Packaging and Inspection

IBC valves are commonly packed in cartons with an internal waterproof plastic bag and an external identification label.

The product page states that many valve models are packed approximately 36 to 40 pieces per carton, depending on the valve size and design.

Before installation, every batch should be inspected for:

• Correct valve size

• Thread condition

• Disc movement

• Handle operation

• Gasket position

• Surface damage

• Color consistency

• Connection compatibility

• Leakage after installation

The valve should open and close smoothly without excessive force.

After assembly, the complete IBC tank should pass an appropriate leak test before filling or shipment.

A Practical IBC Discharge Solution

The 1.5 inch IBC butterfly valve provides a compact and convenient solution for controlling liquid discharge from compatible IBC containers.

Its plastic construction, reinforced valve disc, multiple gasket options and threaded or welded installation methods allow the valve to be configured for different industrial applications.

EPDM can support many water-based liquids, while NBR, FPM and PTFE options provide alternatives for oils, solvents and demanding chemical products.

The most important purchasing step is verifying compatibility.

By confirming the tank outlet, thread dimensions, packaged liquid, seal material and installation method before ordering, buyers can reduce leakage risks and select a more suitable IBC tank valve for long-term use.
