A jerry can that looks good outside may still fail in use. It may leak at the neck, have a weak handle, show rough trimming, fail cap sealing, or deform during transport. For chemical, lubricant, and agrochemical packaging, these problems can create customer complaints and product loss. That is why leak testing and neck trimming should be considered essential parts of a jerry can making machine full line.
Some buyers focus on the blow molding machine and mold while treating downstream quality control as optional. This approach is risky. The product is not finished when it leaves the mold. It must be trimmed, inspected, tested, and prepared for filling or delivery. Downstream equipment protects the factory from shipping defective containers and helps operators find process problems earlier.
1 Neck trimming | 2 Visual inspection | 3 Leak testing | 4 Rejection handling | 5 Data feedback |
QC Step | What It Catches | Visual Content to Add |
Neck trimming | Poor opening quality and cap-fit problems | Close-up of trimming station |
Leak testing | Pinholes, weak weld lines, valve-area defects | Testing station image |
Operator review | Deformation, color issues, contamination | Inspection checklist graphic |

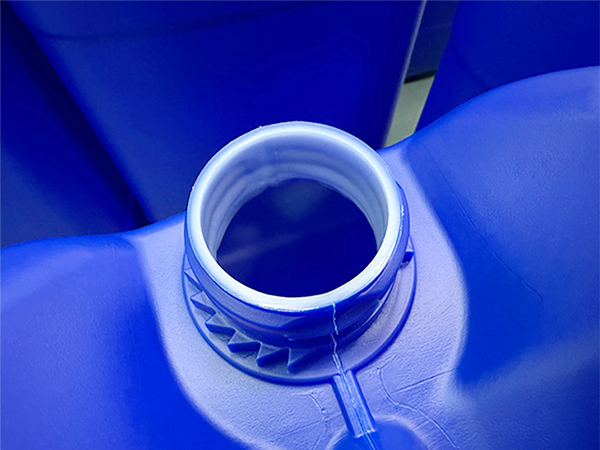

Why the neck area deserves special attention
The neck is the connection between the container and the closure system. It must match the cap, liner, induction seal, filling machine, and customer handling requirement. If the neck is uneven, deformed, or poorly trimmed, the container may leak even if the body is strong. For lubricant and chemical packaging, sealing accuracy is directly related to customer trust.
Neck quality depends on mold design, parison control, cooling, trimming method, and operator inspection. A good production line should create a consistent neck opening and remove unnecessary flash cleanly. The trimming tool should match the specific neck design. Using a rough manual method may reduce investment at first, but it can increase labor and quality risk during mass production.
Deflashing removes excess material from the top, bottom, handle, or parting line. If flash remains, the product may look poor, interfere with packing, or create safety issues. If deflashing is too aggressive, it may damage the container. A balanced process removes unwanted material while protecting the functional structure.
For 20L and 25L jerry cans, handle and base areas must be handled carefully. A sharp edge near the handle can affect user comfort. Poor base trimming can make the container unstable. Consistent deflashing improves both appearance and usability.
Leak testing catches defects that eyes cannot see
Visual inspection cannot detect all leakage risks. Small holes, weak seams, poor neck sealing surfaces, or hidden defects may pass a quick look. Leak testing applies controlled pressure or another suitable method to identify containers that cannot hold the required condition. The test should be defined by product application and customer standard.
Buyers should ask about test pressure, holding time, detection accuracy, rejection method, and whether the system records results. The correct test method depends on the container size, wall thickness, intended liquid, and production speed. A high-output line needs testing capacity that matches the blow molding machine; otherwise finished containers will accumulate before inspection.
Cap-fit and filling compatibility matter
Many jerry cans are produced to supply a filling operation. Even if the container does not leak during a simple test, it must still run smoothly on filling and capping equipment. Neck height, thread quality, opening diameter, sealing surface, and cap torque compatibility should be checked. A small dimensional issue can slow the filling line or cause inconsistent sealing.
When designing the line, buyers should provide cap samples and filling requirements. The supplier can then recommend suitable neck design, trimming tools, and inspection methods. If the container is part of an integrated packaging project, communication between the container producer and filling-line team is important.
Testing should be placed in the right location
Leak testing should usually come after key trimming and before final packing. If testing is too early, later handling may still damage the product. If testing is too late, defective containers may occupy space and labor before rejection. The layout should allow rejected products to be removed without stopping the entire line.
The operator should also have space to inspect and classify defects. Rejected containers should not be mixed with good products. If scrap can be reused, the factory should define whether rejected items go to crushing, rework, or separate disposal. A clear rejection route keeps the production area organized.
Quality problems often start upstream
Leak testing identifies defective products, but it does not solve the root cause by itself. If the rejection rate increases, the team should check upstream conditions: material quality, melt temperature, parison control, mold cooling, clamping, trimming tools, and operator handling. A stable line uses testing data to improve the process.
For example, repeated failures near the neck may indicate a trimming issue, mold problem, or cooling condition. Failures near the handle may point to wall-thickness distribution. Random pinholes may suggest material contamination or process instability. A good quality system turns defects into useful production information.
Manual, semi-automatic, or automatic?
The right level of trimming and testing automation depends on output, labor cost, product risk, and customer requirement. A new factory with lower volume may begin with semi-automatic stations. A high-volume producer should consider automatic handling, trimming, and leak testing to reduce labor variation and improve consistency.
Automation is not only about speed. It also helps standardize the process. A consistent trimming station can reduce differences between operators. A controlled leak tester can apply the same condition to each container. This is valuable when supplying demanding customers or building a reputation for quality.
What buyers should include in the equipment scope
A serious jerry can production proposal should define deflashing method, neck trimming equipment, leak testing station, conveyor arrangement, rejection handling, inspection position, scrap return, and operator access. The proposal should also list the products each station can handle. If the factory produces multiple sizes, confirm whether each size needs separate tools or fixtures.
Ask the supplier to explain the practical output of the downstream section. If the blow molding machine can produce faster than the leak tester, the line’s true capacity will be limited. Balanced output is more important than a fast main machine.
Quality control protects the sales promise
Customers do not judge a jerry can by the machine that produced it. They judge it by whether it fills smoothly, seals reliably, handles safely, and arrives without leakage. Neck trimming and leak testing are therefore not small details; they are part of the product promise.
For buyers planning a jerry can making machine full line, the best approach is to include downstream quality control from the beginning. A production line that forms, trims, tests, and handles containers properly will have lower rejection risk, better customer confidence, and stronger long-term competitiveness.
