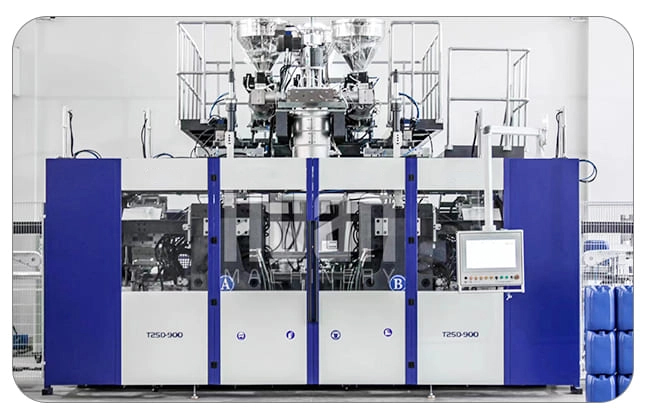

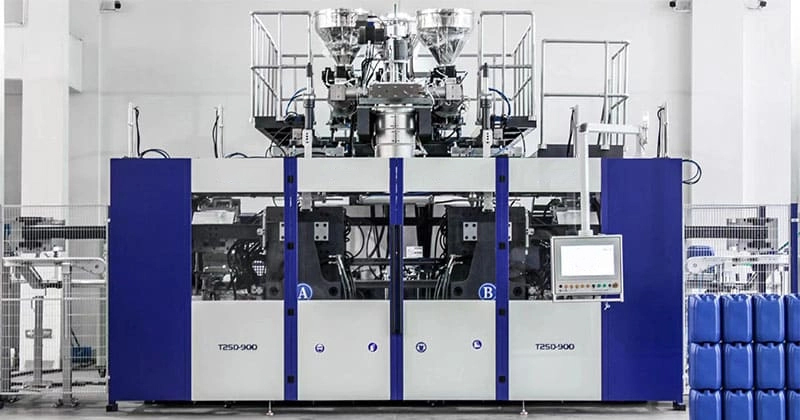

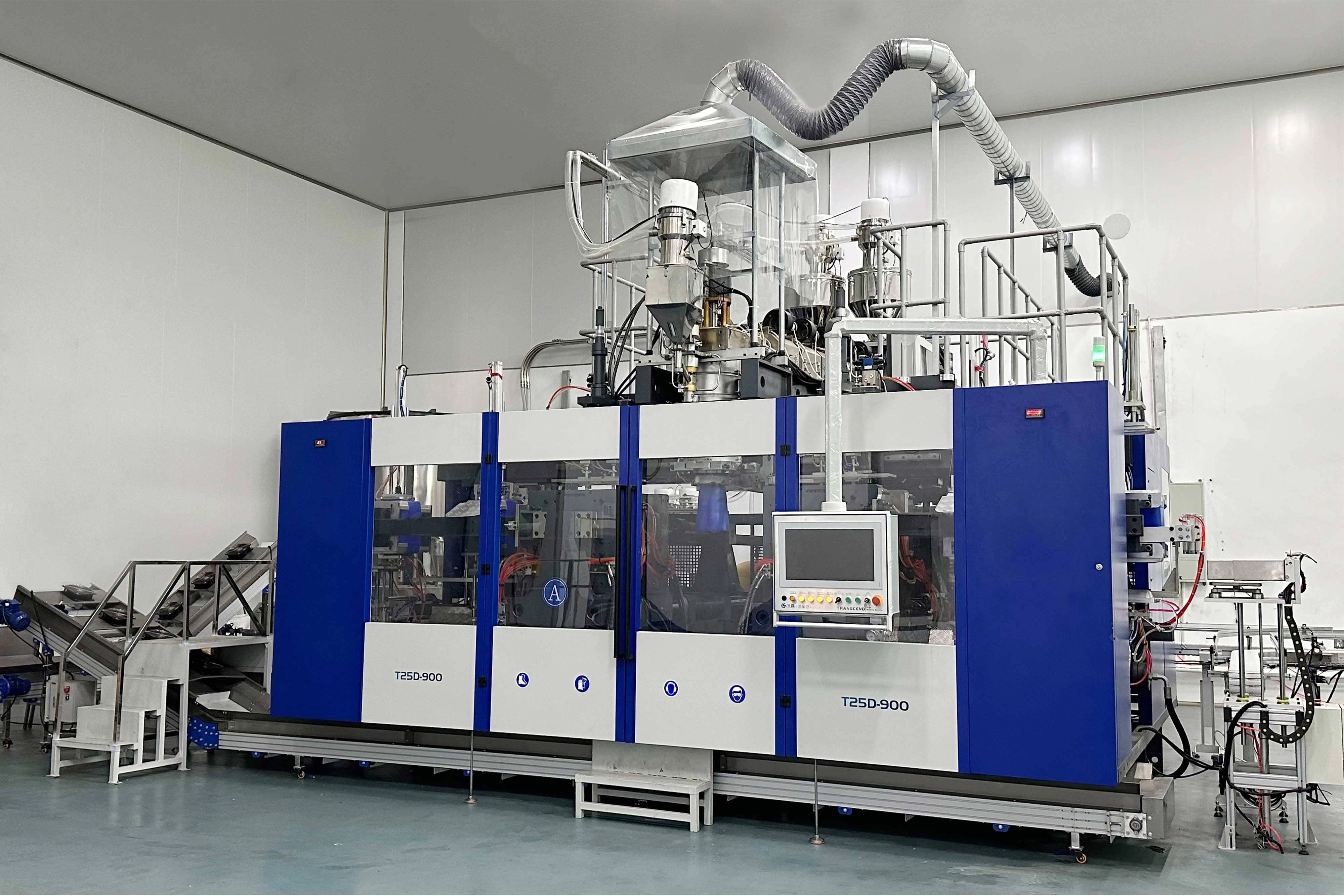

25 Liter Jerry Can Blow Molding Line: Designing Containers That Work with Filling, Capping, Labeling, and Logistics

A 25 liter jerry can blow molding line should be planned around the whole packaging life of the container, not only the molding step. The jerry can must work with filling equipment, cap sealing, labeling, palletizing, warehouse handling, and customer use. A container that looks acceptable after molding may still create problems on the filling line if the neck dimension, handle clearance, label panel, or base stability is wrong.

This is especially important for lubricants, chemicals, agricultural liquids, cleaning products, and industrial oils. These markets care about different details. A lubricant brand may value surface appearance and label quality. A chemical packer may care more about sealing and strength. A logistics-focused distributor may focus on stacking and pallet load stability. The HDPE jerry can blow molding machine must support the final packaging function.

Start with downstream equipment requirements

Before mold design, the buyer should collect information from the filling line, cap supplier, label design team, palletizing plan, and end user. Neck outer diameter, thread, cap type, induction seal, filling nozzle clearance, label area, handle shape, and stacking pattern can all influence the container design. A production line chosen without these inputs may require mold modification later.



 Design the neck as an interface, not a decorative part

The neck is where the container meets the cap, filler, seal, and customer handling. It requires accurate molding and trimming. If the neck is oval, rough, too high, too low, or poorly cooled, the cap may not seal correctly. In a 25L plastic jerry can making machine line, neck quality should be treated as a production-control point.



Label panels and brand presentation matter for lubricant packaging

For lubricant and retail industrial products, the container is not only a storage item. It is part of the brand. The label panel should stay flat enough for consistent label application. Surface defects, color variation, sink marks, or unstable dimensions can reduce shelf appearance. A complete 25L HDPE jerry can production line should therefore control material feeding, mold cooling, product handling, and post-molding deformation.

Brand Requirement checklist:

· Consistent color: Production Detail to Control: Material and color masterbatch dosing; Recommended Check: Color sample comparison by batch.

· Clean surface: Production Detail to Control: Melt temperature and mold surface; Recommended Check: Visual inspection under stable lighting.

· Flat label area: Production Detail to Control: Cooling and panel design; Recommended Check: Trial label application.

· Shape repeatability: Production Detail to Control: Mold temperature and demolding process; Recommended Check: Dimensional sampling.

· No handling damage: Production Detail to Control: Conveyor and stacking method; Recommended Check: Check contact points after transfer.



Logistics requirements affect weight and structure

A 25L jerry can may travel through filling, palletizing, warehouse storage, truck transport, customer storage, and field handling. The container weight should not be reduced blindly. The handle, corners, base, and stacking surfaces must support real use. At the same time, unnecessary weight increases material cost. The best design balances safety, cost, and process stability.

Logistics Condition checklist:

· Long-distance transport: Container Design Focus: Corner and base strength; Production-Line Implication: Wall-thickness program and mold cooling.

· High stacking demand: Container Design Focus: Panel stiffness and base flatness; Production-Line Implication: Material distribution control.

· Manual handling: Container Design Focus: Handle comfort and strength; Production-Line Implication: Handle mold design and inspection.

· Chemical liquid: Container Design Focus: Closure and material compatibility; Production-Line Implication: Cap testing and resin selection.

· Repeated warehouse movement: Container Design Focus: Dimensional consistency; Production-Line Implication: Stable cooling and handling process.



Quick note: Better buyer input - Sample jerry can, cap drawing, filling machine photo, label size, pallet pattern, target weight, material grade, color plan, and expected daily output. Common missing input - Only asking for a 25L machine price without cap, label, filling, or palletizing requirements. This often creates redesign work after the order.



How to discuss compatibility with a machine supplier

A serious supplier should ask more than container volume. They should request drawings, samples, neck details, cap information, filling requirements, label dimensions, material, bottle weight, and automation preference. The machine, mold, trimming station, leak testing station, and conveyors should be matched to the final package.

Before choosing a 25 liter jerry can blow molding line, buyers can request a container compatibility review and send your cap filling and label requirements. This turns the purchase from a machine transaction into a packaging engineering decision. The result is a jerry can that not only comes out of the mold but also runs smoothly through filling, capping, labeling, logistics, and customer use.

Suggested image layout: Intro - 25L jerry cans with blow molding line (ALT: 25 liter jerry can blow molding line for lubricant and chemical packaging); Neck section - Close-up of neck trimming and cap area (ALT: 25L HDPE jerry can neck design for filling capping and sealing); Label section - Finished jerry cans on conveyor (ALT: complete 25L HDPE jerry can production line with finished containers on conveyor).



Run a sample-based approval process

Before mass production, the buyer should approve samples through the same downstream path that will be used in the factory. The sample should be filled, capped, labeled, stacked, and handled. This is better than approving the container only by looking at the shape. A jerry can that passes a desk review may still fail if the label wrinkles, the cap torque is inconsistent, or the base does not run smoothly on conveyors.



This approval process also creates strong content material for the article. Real sample photos, cap trials, and filling-line compatibility images can make the page more convincing than a simple machine brochure.
