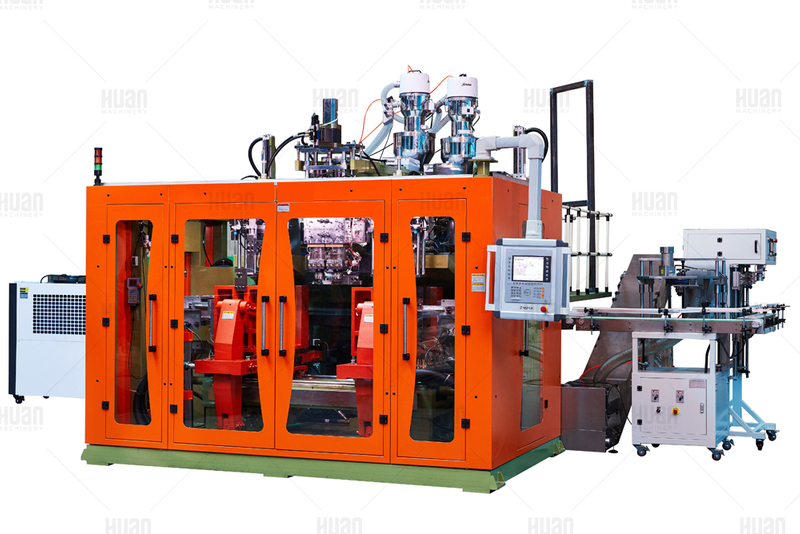

HJS80FD-1T-3P Extrusion blow molding machine for 10L stackable jerry can

Share to:
We have more than 15 years experience in multilayers extrusion blow molding machines.The machine can use recycled plastic material for producing the plastic bottles.Our extrusion blow molding machine can produce hollow bottles from 5ml to 5000L with material HDPE, LDPE, PP, PVC, EVA, EVOH, PA, PVC, ABS such as bottle ,jerry can, canister, container, can, jar, jug, kettle, drum, barrel and other abnormal shape produce such as ocean sea ball, children toys, seat, auto parts, table plate, mannequin, float block, float bridge and others.
  • MP80FD-1T-3P
  • pesiticide bottle,fruit can,chemical bottle,jerry can,cosmetic bottle,sauce bottle,milk bottle and so on.
Layer:
Availability:

MP80FD-1T-3P Extrusion blow molding machine for 10L stackable jerry can

Due to the non-degradability of plastics, our environment has been seriously polluted. Therefore, we are also committed to multi-layer extrusion blow molding machines to increase the utilization rate of recycled plastics and reduce plastic waste. Multi-layer blow molding machine can increase the recycled material layer when producing plastic products, we have 2 layers,3 layers,4 layers,5 layers, 6 layers extrusion blow molding machines,which are widely used in the chemical industry, daily chemical industry, food industry, agriculture and other fields.

MP80FD

Machine Feature

Double station, single-head, 3 layer

• 3 layer screw 70mm/80mm/70mm

• Single head

• with view line system 25mm

• With B&R parison controller

• With hydraulic moving changeable filter for Recycled material layer

• With special fans for the deflashing part cooling

• With servo liner robot arm

• With servo hydraulic system

• With electrical head up

• Conveyor system for deflashing parts, straight and climbing parts.

• Conveyor system for finished product.

· With standard deflashing system



MP80FD-1T-3P
70/80/70/25mm three layer specifications:

Parameter

Material

PE PP

Max.container capacity

10L

Number of die head

1

Machine dimension (L×W×H)

3.3*5.5*2.8M

Total weight

12T

Clamping unit :


Clamping force

150KN

Platen opening strokes

240-620mm

Carriage stroke

600mm

Max. Mould size (W×H )

550*430mm

Extrusion unit :

Screw 1.

Screw II.

Screw III.

Screw IV.

Screw diameter

70mm

80mm

70mm

25mm

Screw L/D ratio

24L/D

24 L/D

24L/D

22L/D

Plasticizing capacity (HDPE)

70kg/h

108kg/h

70kg/h

15kg/h

Screw heating zone

3 Zone

4 Zone

3 Zone

2 Zone

Screw heating power

14.1kw

15.6kw

14.1kw

2kw

Fan power

0.14kw

0.14 Kw

0.14kw

/

Extruder driving power

18.5kw

30kw

18.5kw

1.5kw

Die head unit :


Die head heating zone

10 zone

Power of die heating

14.3kw

Energy-consumption unit :


Total power of machine

158kw

Power of the electric motor

29kw

Air pressure

0.6-0.8Mpa

Average energy consumption

110kw

Consumption compression air

1.2m³/min

Consumption cooling water

80L/min



Welcome to send us inquiry if you are interested.


436







Our-Service


Choosing the suitable machine: We have a professional team, electrical engineers, mechanical engineers, commissioning engineers...Our engineers have been in this field over 18 years, have rich experiences. According to the customer’s plastic products and requirements , we could offer good solution based on experiences. And we also could recommend the related auxiliary machines to get a whole production line.


Customer’s visit: Before playing the order, warmly welcome to visit our workshop if customer interests. We will introduce our machines on site.

Delivery time: we will finish manufacturing and testing within delivery time, make sure customer’s production schedule. During the production process, we also will share the production progress photos and testing video with customer.

Warranty time: our warranty time is 12months after the delivery. During this period, any quality problem of the machine, we will send the replacement parts by express freely. If the buyer meet any technical problems, we will provide the support through remote control.

Training, installation: when the machine reaches the buyer’s factory, the buyer could tell us, we will dispatch an engineer to the buyer’s factory to help install and test the machine until it runs normally. Meanwhile, we also could help train the customer’s employee.


客户1
客户2
客户3
客户4
客户5
客户6



1. who are we?
We are based in Jiangsu, China, start from 2011,sell to Africa(00.00%),Western Europe(00.00%),North America(00.00%),South America(00.00%),Southeast Asia(00.00%),Mid East(00.00%),South Asia(00.00%). There are total about 5-10 people in our office.

2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;

3.what can you buy from us?
Extrusion Blow Molding Machine and Related Auxiliary Machines,Injection Molding Machine and Related Auxiliary Machines

4. why should you buy from us not from other suppliers?
More than 12 years manufacturing and exporting experience. We are a company with producing and exporting as well. We have clients to all over the world, accordingly we know each market well. My factory is near Shanghai airport with convenient traffic.

5. what services can we provide?
Accepted Delivery Terms: FOB,CFR,CIF;
Accepted Payment Currency:USD,EUR;
Accepted Payment Type: T/T,L/C,Credit Card,Western Union,Cash;
Language Spoken:English,Chinese,Spanish
