Automatic 30L to 250L plastic jar hdpe drum extrusion blow moulding manufacturing making machine price manufacture

Share to:
Manufacturer of HDPE Plastic Drum Blow Molding Making Machine offered by Huan machinery.A wide variety of hdpe drum blow moulding machine options are available to you, such as high pressure valve brand, local service location etc.
  • BSM120-220L
  • HUAN
  • BSM120-220L
  • petrol barrel, hdpe drum, fuel barrel, fuel drum, chemical industry, food package, cosmetic field, medical field
Availability:

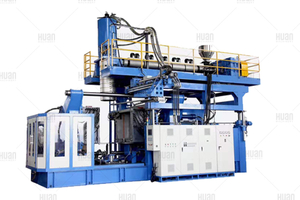

Automatic hydraulic 100 200  litre plastic hdpe drum moulding extrusion blow molding making  machine

It is 100L 120L 150L 200L 220L accumulating machine for producing HDPE, PP, PVC max. 220L plastic products, like 200liter, 220liter jerrycan, plastic container, oil drum, barrel... Besides, it also could produce some different shapes plastic products.

大机配辅机220L

We shall supply full production line including: auto loader,mixer,chiller,compressor,granulator,crusher,neck cut device,injection mold machine for,caps and others

Water Chemical Storage Drum Chemical Drum


Specification
BSM120Z-220L
Max product volume (L)
220L HMWHDPE
Machine weight (T)
38
Machine size(m)
9.5X4.1X6.5
Screw diameter (mm)
120
Length/Diameter ratio
30/1
Extrusion motor power (kw)
132
Plasticizing capacity (kg/h)
320
Head type
accumulating
Clamping force (KN)
1500
Platen size (mm)
1200*1300
Platen opening stroke (mm)
800-1700
Max mould size (mm)
950*1600
Mould thickness (mm)
810-950
Total power (kw)
308
Average energy consumption (kw)
92


Extrusion system:

Extrusion motor and gear box offer the power for screw. Meanwhile screw and barrel with strong material make sure plasticizing plastic material well, ceramic material heater with evenly and quickly heating function!


Head system:

Accumulating type, material ejection with first in first out method. Head structure is designed by our professional engineer, flow stable and quick. Use parison controller for controlling the thickness of jerrycans, to make sure thickness uniform. Besides, we also could adjust thickness range by controller’s operating version!


Clamping system:

It has clamping plate and cylinder, linear guide, slider, transducer... Mold is fixed on the plate. All components make sure mechanical movement precision, stable and quick!



Electrical control:

It has operation touch screen, PLC, contact switch, air switch, delay, voltage stabilized power, inverter ...We could input, modify and monitor the parameter of heating, pressure, time, alarm... to control whole machine’s action parameterby touch screen. It has two operation languages, Chinese and English!




Hydraulic system: It has hydraulic servo motor and pump, valve, pump, oil tank, oil cooler, tube... Offer power for mechanical action, meanwhile proportional valve is controlled by oil flow pressure for transfer digital signal into mechanical action, to control the action of blow pin, clamping structure, head and extrusion!

In this machine, hydraulic motor uses servo type. Servo system could save about 30% power consumption than normal AC motor, and servo motor is with less noise!






Our-Service


Choosing the suitable machine: We have a professional team, electrical engineers, mechanical engineers, commissioning engineers...Our engineers have been in this field over 18 years, have rich experiences. According to the customer’s plastic products and requirements , we could offer good solution based on experiences. And we also could recommend the related auxiliary machines to get a whole production line.


Customer’s visit: Before playing the order, warmly welcome to visit our workshop if customer interests. We will introduce our machines on site.

Delivery time: we will finish manufacturing and testing within delivery time, make sure customer’s production schedule. During the production process, we also will share the production progress photos and testing video with customer.

Warranty time: our warranty time is 12months after the delivery. During this period, any quality problem of the machine, we will send the replacement parts by express freely. If the buyer meet any technical problems, we will provide the support through remote control.

Training, installation: when the machine reaches the buyer’s factory, the buyer could tell us, we will dispatch an engineer to the buyer’s factory to help install and test the machine until it runs normally. Meanwhile, we also could help train the customer’s employee.


客户1
客户2
客户3
客户4
客户5
客户6



1. who are we?
We are based in Jiangsu, China, start from 2011,sell to Africa(00.00%),Western Europe(00.00%),North America(00.00%),South America(00.00%),Southeast Asia(00.00%),Mid East(00.00%),South Asia(00.00%). There are total about 5-10 people in our office.

2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;

3.what can you buy from us?
Extrusion Blow Molding Machine and Related Auxiliary Machines,Injection Molding Machine and Related Auxiliary Machines

4. why should you buy from us not from other suppliers?
More than 12 years manufacturing and exporting experience. We are a company with producing and exporting as well. We have clients to all over the world, accordingly we know each market well. My factory is near Shanghai airport with convenient traffic.

5. what services can we provide?
Accepted Delivery Terms: FOB,CFR,CIF;
Accepted Payment Currency:USD,EUR;
Accepted Payment Type: T/T,L/C,Credit Card,Western Union,Cash;
Language Spoken:English,Chinese,Spanish
